Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-UN18DP

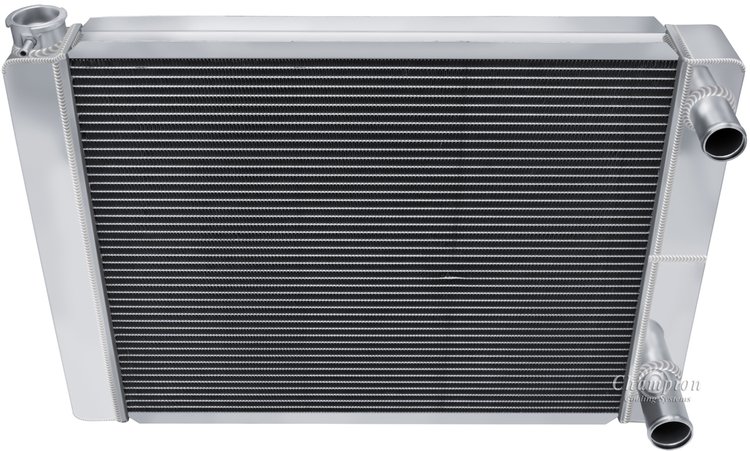

UN18-DP Universal Aluminum Radiator
$19499
Ships on 09/17/2026
Lowest Price GuaranteeDouble-Pass
Universal Aluminum Radiator19 1/2 in. H x 23 in. W x 3 in. T 1 1/2 in. Inlet 1 1/2 in. Outlet Double-Pass 3-Tube Core Cross-Flow Design Saddle Mount Polished Finish
Champion Cooling Systems UN18DP Universal Aluminum Radiator Features:
- 100% tig welded
- Billet fill neck
- 2 mm thick tanks and fittings
- Brazed core technology
- 3/8 in. spaced tubes
- 14-16 fins per inch
- Max Cool louvered fin technology
- 16 lb. cap included
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height17.0
Package Width18.0
Package Length60.0
Weight15.0 PG
Overall Thickness3 in (76.2 mm)
Overall Height19.5 in (495.3 mm)
Outlet Size1 1/2 in.
Radiator Cap IncludedYes
Radiator MaterialAluminum
QuantitySold individually
Mounting Hardware IncludedNo
Inlet LocationUpper passenger side
Inlet Size (In.)1 1/2
Core Height18 in (457.2 mm)
Core Thickness2.25 in (57.15 mm)
Core Width18 in (457.2 mm)
Row Quantity3
Outlet LocationLower passenger side
Overall Width23 in (584.2 mm)
Radiator FinishPolished
Transmission CoolerNo
Radiator StyleCrossflow
Vendor Part NumberUN18DP
Package Qty1
Package TypeEA
