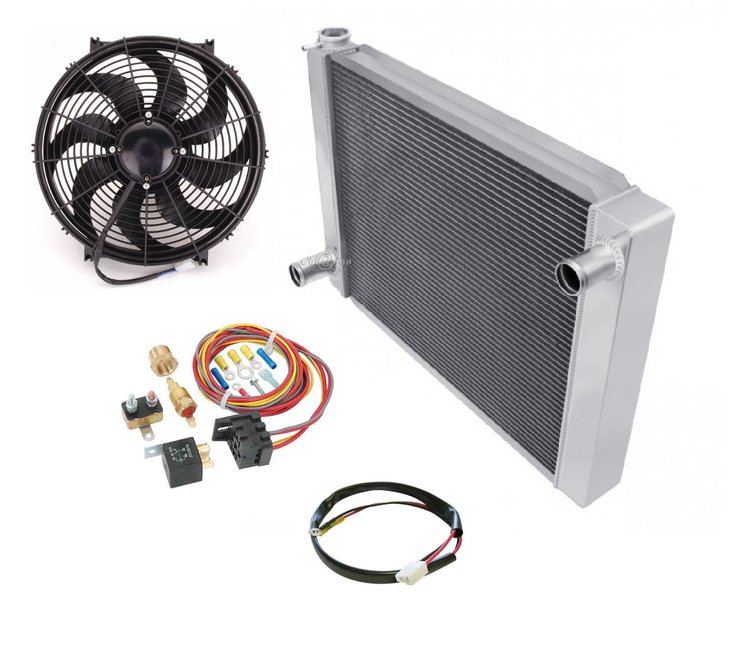

UN18FD Universal Radiator & Fan Kit [18 x 18 in. Single Pass]
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-UN18FDK

UN18FD Universal Radiator & Fan Kit [18 x 18 in. Single Pass]

$41622
ShippingShips on 09/18/2026
Lowest PriceLowest Price Guarantee

Single-Pass
Universal Radiator Kit [Single Pass]
  • Includes:
    • 18 x 18 in. 3-Row, Cross-Flow Radiator
    • 16 in. HD Electric Cooling Fan
    • Electric Fan Wiring Harness & Relay Kit
    • Fan Pig Tail Connector

      Champion UN18FD Radiator & Fan Kit Includes:

      • (1) Champion Aluminum Universal 3 Row Cross Flow 18 in. Core Radiator - UN18FD
      • (1) JEGS Universal HD Electric Fan - 555-52110
      • (1) JEGS Single Electric Fan Wiring Harness & Relay Kit - 555-10560
      • (1) SPAL Fan Pig Tail Connector - FR-PT
    • Part TypeRadiator
    BrandCHAMPION COOLING SYSTEMS
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height19.5 in (495.3 mm)
    Blade MaterialNylon
    Outlet Size1 1/2 in.
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Number Of Blades8 blades
    QuantitySold as a Kit
    Mounting Hardware IncludedNo
    Inlet LocationUpper passenger side
    Inlet Size (In.)1 1/2
    Core Height18 in (457.2 mm)
    Core Thickness2.25 in (57.15 mm)
    Core Width18 in (457.2 mm)
    Row Quantity3
    Outlet LocationLower driver side
    Overall Width23 in (584.2 mm)
    Radiator FinishPolished
    Transmission CoolerNo
    Part FitmentUniversal
    Radiator StyleCrossflow
    Package Qty1
    Package TypeEA
