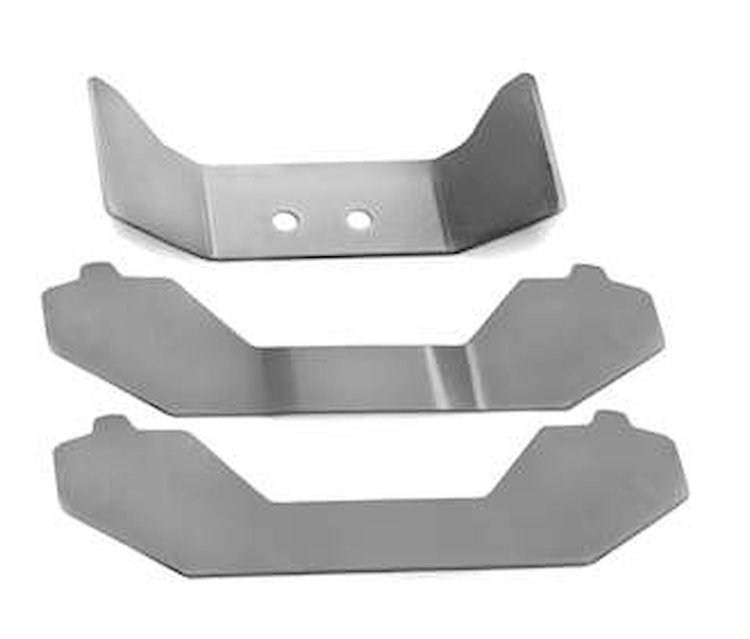

Vehicle Info NeededES-1193 1952-1954 Chevy Transmission Mounting Kit (PowerGlide,700R,Standard)
Ships on 09/15/2026
Lowest Price Guarantee- 1952-1954 Chevy Transmission Mounting Kit (PowerGlide,700R,Standard)
Chassis Engineering ES-1193 Features:
ES-1193 Transmission Mounting Kit for 1952-1954 Chevy (PowerGlide,700R,Standard)
Transmission Mounting Kit fits 1952-54 Chevy. Original 3 Speed, Powerglide, & 700R OD transmissions . This is a weld on kit.
Installation Instructions for ES-1192 Transmission Mount for Original 3 Speed, Powerglide, & 700R OD Transmission for 1952-1954 Chevy Car.
Use Chassis Engineering Transmission Cushion Set SS-0112
1. Clamp side plates to the crossmember center as shown
2. Center side to side with tabs against top crossmember lips. Be sure everything is straight, level and centered. Important: make sure the plates line up with eachother.
3. Weld the front and rear plates in place.
4. Cut the exposed part of the original crossmember away, it should now be level with new plates.
5. Fit top mounting plate into place. Grind any interference or excess away. Rear of top plates and rear side panel should fit like below for proper line up and welding. Upper lips should line up.
6. When fitting is done, clamp into place and finish weld.
Chassis Engineering Transmission Crossmembers – Precision Fit Strength For Hot Rod And Custom Builds
Chassis Engineering Transmission Crossmembers are designed to provide durable support, precise drivetrain positioning, and simplified installation for hot rods, street rods, classic cars, and custom chassis applications. Built from high-quality steel construction, these transmission crossmembers deliver exceptional structural integrity while helping reduce drivetrain vibration and maintain proper transmission alignment under demanding driving conditions. Chassis Engineering offers a wide range of universal and vehicle-specific crossmembers compatible with popular GM, Ford, and Chrysler transmissions, making them ideal for restoration projects, performance upgrades, and custom fabrication work. Engineered for easy mounting and long-lasting reliability, Chassis Engineering transmission crossmembers provide the strength, fitment, and professional-quality support needed for dependable street and performance builds.
