Chassis Engineering ES-2051 Features:

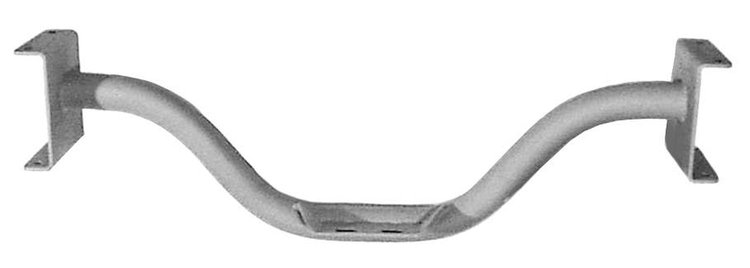

ES-2051 Transmission Crossmember w Master Cylinder Mount for 1948-1952 Ford Pickup (T350,T400,T700,C4)

Ford and Chevrolet transmissions. Bolts into frame for use with T-350, T-400, T-700, C4. Frame rails are straight in this area so transmission crossmember can be positioned as needed. Hardware and instrucions are included.

Bolts into frame. Fits most Ford and Chevrolet transmissions using a firewall swing type brake pedal. Also works with T-400 using manual brakes with stock or Chassis Engineering pedal. Frame rails are straight in this area so transmission crossmember can be positioned as needed . Hardware and instructions included.

Installation Instructions:

Step 1: Locate crossmember inside frame rails using the measurement. This is a purposely tight fit. Use a large plastic hammer to position. Be sure to center right to left and front to back. We recommend sitting the engine and transmission in place to double-check positioning.

Step 2: Clamp crossmember to frame and drill the bottom holes in this aproximate location. Do all 4 bottom holes.

Step 3. Do the top holes the same (if the body is still on, ue a long drill bit, and drill from the bottom using the bottom holes as guides). Remove clamps and install bolts.

Note: The ES-2051 transmission crossmember contains the master cylinder mount and requires the installer to fabricate the pedal linkage for their particular installation.

ES-2150 Turbo transmission has clearances for non-power brakes only, but also fits others if brake cylinder is mounted in the firewall. The ES-2150 crossmember doesn't have the master cylinder mount
