90? V6
- Raised Runner Intake Manifold Base
- Chevy 90? V6

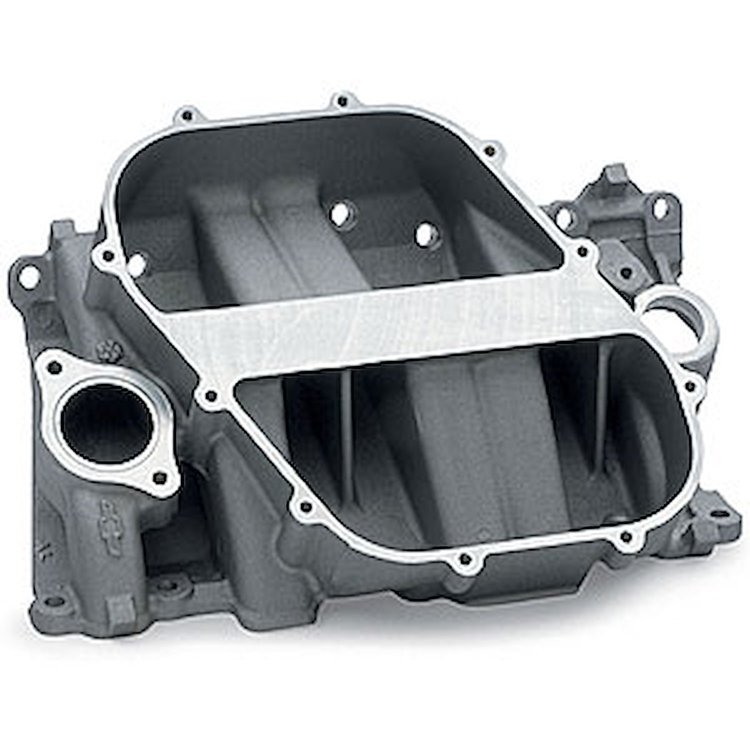

This second design box-style aluminum intake manifold is designed for raised runner V6/90? cylinder heads. It has larger inlet runners and a bigger plenum than the first design manifold described above. An air gap beneath the runners insulates the intake charge from engine heat. This second design manifold will clear a large diameter H.E.I. distributor. The manifold cover's carburetor mounting flange fits standard flange and 4500-type four-barrel carburetors. The carb pad is undrilled to allow the carburetor to be mounted sideways or with its float bowls at the front and rear of the engine. This cross-ram intake manifold is recommended for all maximum-effort V6/90? competition engines equipped with raised runner Chevrolet cylinder heads. Technical Notes: An aluminum plate should be mounted between the runner entries for optimum performance; see the Chevy Power manual for information.
BrandCHEVROLET PERFORMANCE
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
