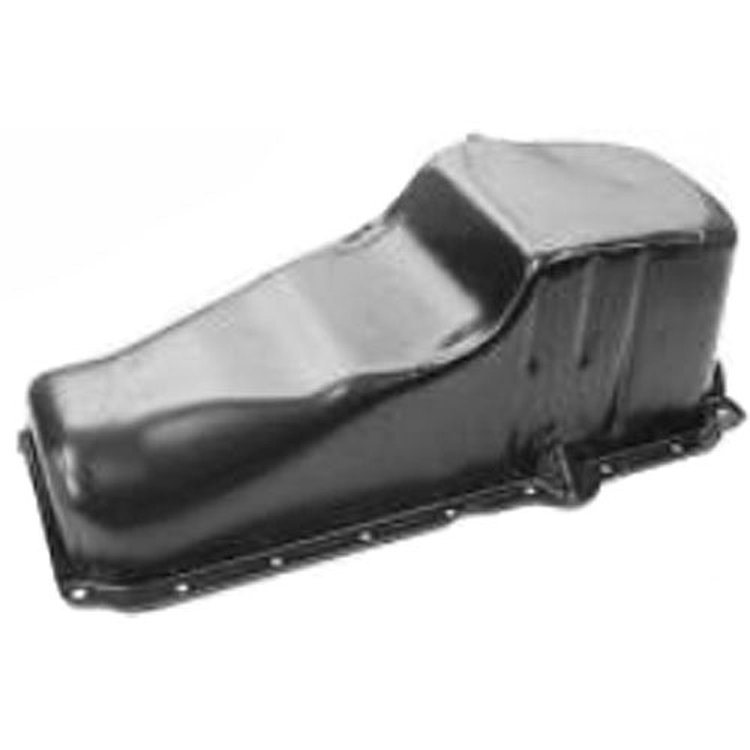

Oil Pan 1955-1985 Small Block Chevy

Name: Oil Pan 1955-1985 Small Block Chevy
Brand: CHEVROLET PERFORMANCE
SKU: 809-10066039
Price: 189.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy

1955-1985 Small Block Chevy
2-Piece Rear Main Seal
Dual Dipstick Bumps
4-Quart

Notes:
This is the replacement oil pan specific to the Chevrolet Performance Universal 350/290hp engine and GM Goodwrench 350/260hp engine.
It has the dual dipstick bumps, left and right side.
Use with GM oil pan gasket 809-10089606.
Production Chevrolet small-block V8 and V6/90-degree engines were redesigned in 1986 with a leak-resistant one-piece rear seal. This change required a revised oil pan design to fit a new rear seal retainer which is bolted to the back of the engine block. A new one-piece oil pan gasket replaced the four-piece gasket set used on pre-1986 engines.As a result of these changes, oil pans and gaskets are not interchangeable between 1955-85 and 1986-up engines. If you have installed crankshaft seal adapter on a block which is machined for a one-piece rear seal, you must use an oil pan and gasket designed for 1986 and newer engines.

Part TypeOil Pan

BrandCHEVROLET PERFORMANCE

Package Height13.8

Package Width14.0

Package Length21.7

Weight8.7 PG

Part CategoryReplacement Parts

Oil Pan Depth7.5 in (190.5 mm)

Part FitmentDirect Fit

Vendor Part Number10066039

Package Qty1

Package TypeEA
