GM Goodwrench 350 Engine Components Package 14

Name: GM Goodwrench 350 Engine Components Package 14
Brand: CHEVROLET PERFORMANCE
SKU: 809-10067353K14
Price: 3301.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Engine Components Packages

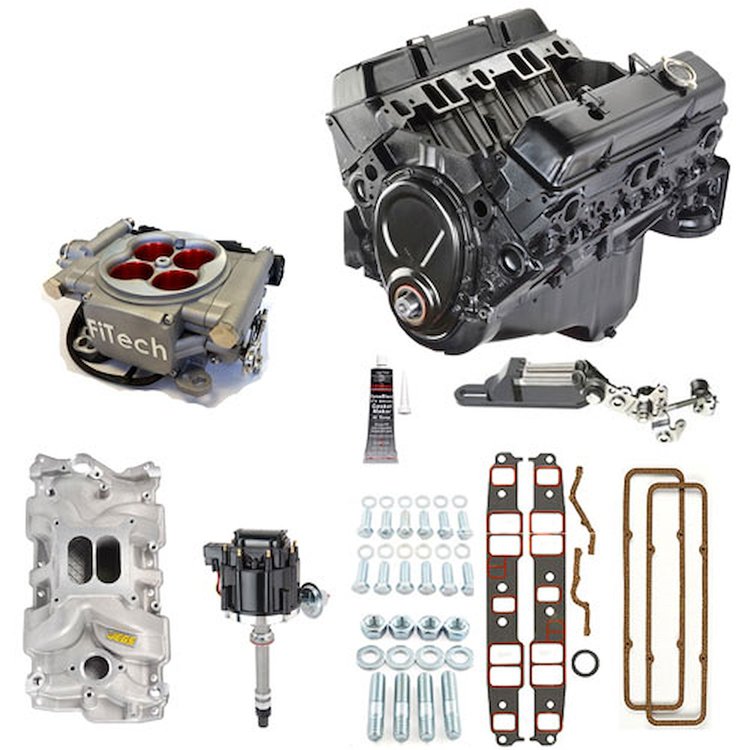

Includes:

Goodwrench 350 Engine
GoStreet EFI
Return Spring
Champion Intake
Intake and Valve Cover Gaskets
Intake Bolts
HEI Distributor
Carburetor Studs
RTV Sealant

350 Engine Components Package 13 Includes:
GM Goodwrench 350ci Engine - 809-10067353
FiTech Go Street EFI Throttle Body - 546-30003
FiTech Throttle Return Spring Kit - 546-60011
JEGS Champion Intake Manifold - 555-513000
JEGS Intake Manifold Gaskets - 555-210004
JEGS Intake Manifold Bolts - 555-83200
JEGS HEI Distributor - 555-40002
JEGS Carburetor Studs 1.5" - 555-15840
JEGS RTV Sealant (Black) - 555-28035
JEGS Valve Cover Gaskets - 555-210070
Note: The JEGS Champion Intake Manifold may require thicker valve cover gaskets when using stock/stamped steel valve covers. For adequate runner clearance valve cover gaskets p/n 555-210070 are included in the kit (5/16" thick).

Free Shipping!

This universal 350 engine uses a brand new block and can be a replacement in most 1973-85 GM vehicles and retrofitted into virtually any vehicle. At a base horsepower of 195, the engine can produce up to 260 HP and 350 ft/lbs torque with a 4-bbl carburetor and headers. The engine is covered by a GM warranty for three years or 100,000 miles in applicable GM vehicles only. JEGS has the GM Goodwrench Chevy 350 for sale at a great price!

Specifications

4-bolt main with 2-piece rear main seal
Nodular iron crankshaft
4.000" bore x 3.480" stroke
Internal balance
LT1/LT4 powdered metal connecting rods
Cast aluminum pistons (dished)
8.5:1 compression ratio
Hydraulic flat tappet cam (.383"/.401" Lift, 194 / 202 Duration @ .050", and 112° lobe separation)
Cast iron cylinder heads with 76cc chambers
1.940" Intake / 1.500" Exhaust valves
1.250" diameter valve springs
1.5:1 ratio rocker arms
3/8" pressed-in rocker studs
Block is compatible with left or right side oil dipstick (Requires Plug for Unused Side - sold separately) - p/n 809-14091563 left side plug; or p/n 809-9421743 right side plug
4-quart oil pan
Oil pump, oil pump pickup and oil pump drive shaft installed
Includes timing tabs for a 6-3/4" or an 8" balancer (balancer not included)
Recommended spark plug: 14mm thread, .460" reach, 5/8" hex, tapered seat, projected tip (AC Delco p/n 065-R45TS, Autolite p/n 417-144)
Requires p/n 809-19299222 or p/n 555-23605 Oil filter adapter (not included)
Not Intended for Marine Use
No core charge
