Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-10108688

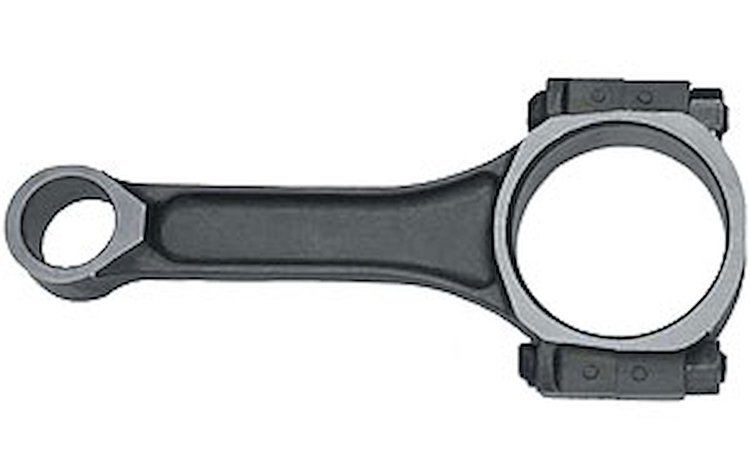

Connecting Rod I-Beam PM
$10716
Ships on 09/10/2026
Lowest Price GuaranteeSmall Block Chevy
- Connecting Rod
- I-Beam PM
- 5.700''
- 1/pkg
Tech Specs: - 2.100 crank journal
- 0.927 pin diameter
- 3/8 bolt
- Press fit pin
- High-quality, powdered metal (PM) connecting rods
- For competition or street applications below 500 horsepower
- Replaces the old "pink rods" and are the same rods used in LT1 andLT4 Corvette engines
Part TypeConnecting Rod
BrandCHEVROLET PERFORMANCE
Package Height3.1
Package Width3.3
Package Length10.4
Weight1.47 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandGM Performance Parts
Connecting Rod MaterialForged 4340 steel
Advertised Horsepower Rating (Hp)500 hp
Advertised Rpm Rating6,500 rpm
Connecting Rod Bolt Head StyleHex head
Connecting Rod Bolt Material4740 chromoly alloy
Wrist Pin StylePress-fit
QuantitySold individually
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Connecting Rod Length Center To Center5.7 in (144.78 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)600
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)140,000
Cap Retention StyleThrough-bolt
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number10108688
Package Qty1
Package TypeEA
