Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-10185034

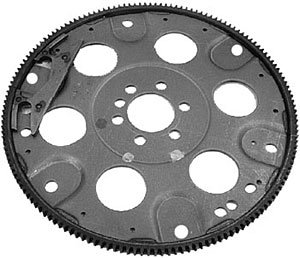

Flexplate 1991-up Big Block V8
$25312
2 left in stock
Ships Today
Lowest Price GuaranteeGM Flexplates
- Flexplate
- 1991-up Big Block V8
- One-Piece Rear Seal
- External Balance
- 14" Outside Diameter
- 3.58" Crank Flange Bolt Pattern
- 10.75" and 11.50" Torque Converter Bolt Pattern
- 168-tooth Ring Gea
Technical Notes: - For 1991 & later Gen V & Gen VI 454 (7.4L) HO & 502 HO engines. This flexplate is required when using a steel forged crank on Gen V design engines.
- This flexplate is similar to Mark IV design but not interchangeable because of balance. It has a dual-bolt torque converter pattern design. When using a 4L80 automatic transmission, only three attaching bolts can be used.
Part TypeFlywheel
BrandCHEVROLET PERFORMANCE
Package Height3.6
Package Width15.8
Package Length16.2
Weight6.79 PG
Part CategoryPerformance Parts
Flexplate MaterialSteel
Thickness At Teeth (In)0.46
Clutch Diameter (In)10.750" and 11.500"
Tooth Quantity168
Mounting Hole Quantity5
Dowel Pin Diameter Flywheel To Crank (Mm)11.91
Cover Pressure Plate Mounting Hole Diameter (Mm)11.11
Mounting Hole Diameter11.91
Rear Main Seal Style1-piece
Bolt Circle Diameter (Mm)90.93
Mount Hole Quantity6
Mount Hole Diameter (In)0.469in
Ring Gear Tooth Quantity168-tooth
ColorGray
Dowel Pin Diameter Flywheel To Crank (In)0.469
Thickness At Teeth (Mm)11.69
QuantitySold individually
MaterialSteel
Cover Pressure Plate Mounting Hole Diameter (In)0.438
Engine BalanceExternal
Dowel Pin Quantity Flywheel To Crank1
TypeFlexplate
Mount Hole Diameter (Mm)11.91mm
Bolt Circle Diameter (In)3.58
Outside Diameter7.12
Safety RatingNot SFI Approved
Grade TypePerformance
Cover Pressure Plate Mounting Hole To Flywheel Quantity6
Vendor Part Number10185034
Package Qty1
Package TypeEA
