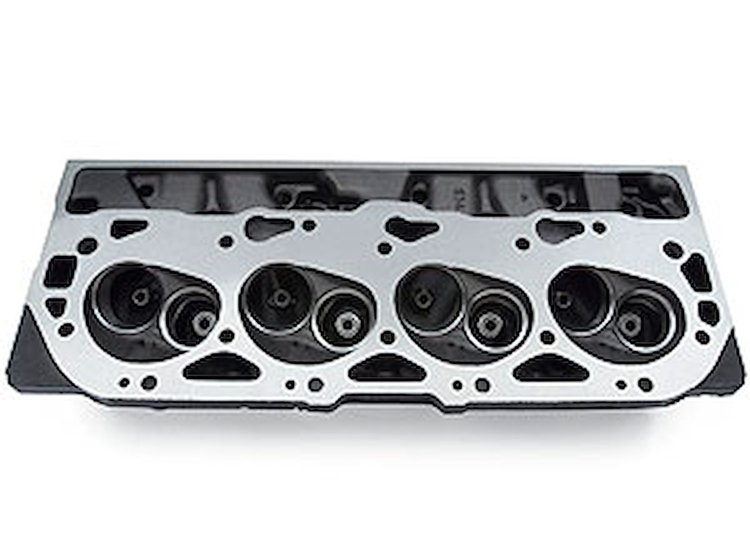

Oval Port Aluminum Cylinder Head for Big Block Chevy, Bare Head
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-12363399

Oval Port Aluminum Cylinder Head for Big Block Chevy, Bare Head

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Street Cylinder Heads
  • Oval Port
  • Chevrolet Performance Bow Tie Cylinder Heads are an ideal combination of street drivability and drag strip performance. They provide a broad power range with ample low-end torque, excellent throttle response, good mid-range torque and enough top-end power to beat your competitors to the finish line! Bow Tie Street Cylinder Heads have rectangular or oval intake ports. Rectangular intake ports are larger in volume and designed to enhance high-RPM horsepower. These heads are best for vehicles that see frequent drag strip action. Cylinder heads with oval intake ports are smaller in volume and designed for greater low-RPM torque. Oval port heads are best for street applications where lots of bottom-end off-the-line power is desired.

    Show More

    Chevrolet Performance Bow Tie Race Cylinder Heads are designed for monster-cubic-inch stroked big blocks to maximize their performance potential. They're made of 356-T6 aluminum with huge, raised intake ports; larger valves; smaller combustion chambers; and two additional head bolts for increased clamping force. The runners are purposely left smaller to accommodate custom porting.

    Features

    • 356-T6 aluminum
    • Rectangular or oval ports
    • Will work on Mark IV and Gen V/VI blocks
    • 9/16" thick decks
    • As-cast intake and exhaust ports
    • No heat risers
    • 1.55" valve spring seat diameter
    • Heli-coiled 7/16" screw-in rocker stud holes
    • Designed for use with 3/8" pushrods
    Part TypeCylinder Head
    Product LineChevrolet Performance Big Block Chevy Bow Tie Aluminum Cylinder Heads
    BrandCHEVROLET PERFORMANCE
    Package Height8.6
    Package Width11.4
    Package Length26.2
    Weight36.24 PG
    Part CategoryPerformance Parts
    Vendor Part Number12363399
    Package Qty1
    Package TypeEA
