CHEVROLET PERFORMANCEPART NUMBER: 809-12480049

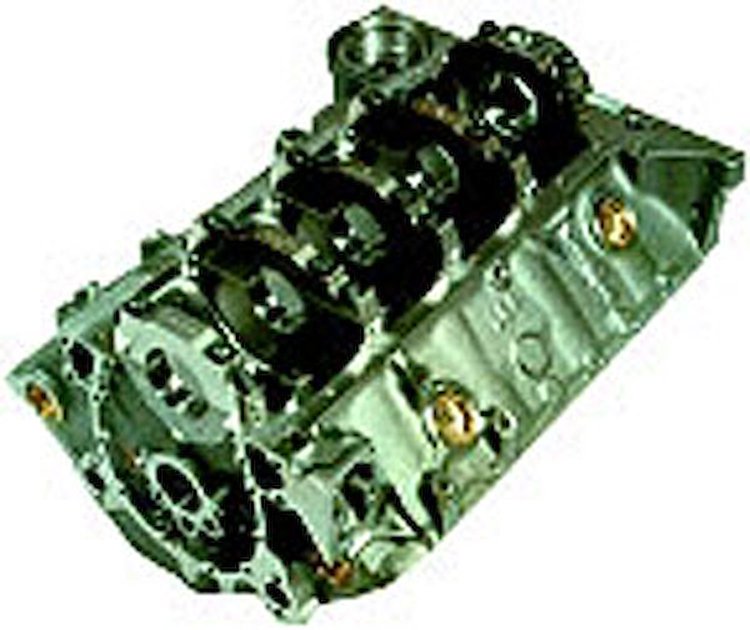

350 Cast Iron Bow Tie Sportsman Competition Block (400 Mains)
$3,21770
Truck Freight
Items You Need
350 Blocks
- 350 Bow Tie Sportsman Block
- CNC-machined cast iron competition block
- 4-bolt nodular mains (splayed caps on center 3 mains)
- 3.980" finished bore
- 400 Main Size
- Tall lifter bores
- 2-piece rear main seal
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- The Chevrolet Bow Tie Sportsman Block has been the starting point for countless race engines. These iron blocks are available in a variety of finish options to build almost any engine combination. Most of these blocks are secured by Grade 8 bolts, and all blocks in this family have a 9.025" deck height. They're a great foundation for a serious street, circle track, or drag car that makes between 350 and 500 horsepower.Technical Notes
- Oil Dipstick Holes Not Drilled
- Timing System Clearance Must Be Checked
- Lifter Bores May Require Clearancing on Some Roller Lifters
Part TypeEngine Block
Product LineChevrolet Performance SBC Bow Tie Sportsman Engine Blocks
BrandCHEVROLET PERFORMANCE
Package Height17.0
Package Width19.0
Package Length28.0
Weight225.0 PG
Part CategoryPerformance Parts
Overall Width (In)17.02
Cylinder Bore As Shipped3.98 in (101.092 mm)
Oiling TypeWet
Casting Number10051184
Seal Type2 pc
Freeze Plugs IncludedNo
Deck Height (In)9.025"
Main Bolt Style4-bolt
Deck Height9.025 in (229.235 mm)
Fuel TypeGas
Main Cap MaterialDuctile iron
Main Bearing Cap Bolt Quantity4
Rear Main Seal Style2-piece
Main Caps IncludedYes
Cylinder Bore Diameter101.092
Main Journal Type400 mains
Engine Block StyleStock/OEM standard Deck
Engine Block MaterialCast iron
UsageAmateur
Engine Block Weight (Lbs.)180
Overall Width (Mm)432.3
QuantitySold individually
Raised Cam LocationNo
MaterialCast Iron
Main Bearings IncludedNo
Standard Or Reverse RotationStandard
Block Casting Number10051184
Maximum Horsepower (Hp)500
Product Length553.21
Cylinder Quantity8
Cap MaterialNodular
Finished Cylinder BoresNo
Cam Bearings IncludedNo
Part FitmentSemi Universal
Main Cap Fasteners IncludedYes
Weight (Lb)208
Grade TypePerformance
Vendor Part Number12480049
Package Qty1
Package TypeEA
