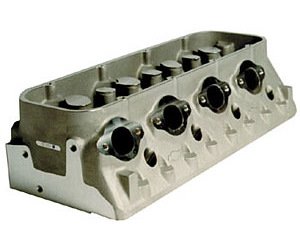

Splayed-Valve Aluminum Cylinder Head, Semi-Machined
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-12480147

Splayed-Valve Aluminum Cylinder Head, Semi-Machined

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Standard 4.400" Bore Spacing
    Splayed-Valve Aluminum Cylinder Head
  • Semi-Machined: Main surfaces, exhaust bolt pattern, valve guides, and spark plug holes

    Semi-Machined Detail:
  • Machined: Main surfaces, exhaust bolt pattern, valve guides andspark plug holes
  • Not Machined: Head bolt holes, dowel holes, intake bolt holes, pushrod holes, valve seats, valve spring seats and rocker stands
  • Same casting P/N 12480146

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

These small block Chevy splayed-valve aluminum cylinder heads are a radical departure from standard in-line valve heads. Their splayed-valve arrangement angles both the intake and exhaust valves inward toward the center of the combustion chamber, allowing maximum valve sizing to dramatically improve airflow without increasing bore diameter. Castings have a 0.240" minimum port wall thickness so, for even greater flow, extensive modifications can be made. Sold individually, these aggressive all-out competition cylinder heads are designed to get the most power from your small block Chevy with no regard for "streetability." NHRA Competition Eliminator participants routinely produce over 1000 horsepower (naturally aspirated) with these race cylinder heads.

Show MoreFeatures
  • 355-T7 aluminum
  • No valve seats or guides
  • "As-Cast" Intake Ports: 240cc
  • "As-Cast" Exhaust Ports: 78cc
  • Extra-thick deck for angle or heavy flat milling
  • Valve spring pads accommodate 1.625'' springs
  • Modified Valve Angles: 16° x 4° Intake, 11° x 4° Exhaust
  • 4.400'' Bore Spacing: 45cc "As-Cast" Combustion Chambers
  • 4.500'' Bore Spacing: 40cc "As-Cast" or Unfinished Combustion Chambers
  • Spark plug location revised for angled 14mm, 5/8" hex, 3/4" reach, gasket seat plugs
  • Designed for longer-than-stock 2.200''/1.650'' valves and aftermarket shaft-mount rocker systems Requirements
  • Valve Cover Gaskets #809-10185043
  • Intake Manifold Gaskets #809-10185042
  • Custom-fabricated valve covers and intake manifold
Part TypeCylinder Head
Product LineChevrolet Performance Small Block Chevy Splayed-Valve Aluminum Race Cylinder Heads
BrandCHEVROLET PERFORMANCE
Package Height6.4
Package Width9.7
Package Length23.9
Part CategoryPerformance Parts
Casting Number10185040
Plug TypeAngled
Head Casting Number10185040
MaterialAlum
Intake Valve Diameter55.88
Valve Angle (Deg)Splay
Port TypeSplayed
Guide Plates IncludedNo
Combustion Chamber Volume45
Intake Valve Lift (In)2.2
Intake Runner Volume14.645
Valve Spring Diameter41.28
Part FitmentSemi Universal
Intake Runner Volume (Cc)-
Grade TypePerformance
Exhaust Valve Diameter41.91
Vendor Part Number12480147
Package Qty1
Package TypeEA
