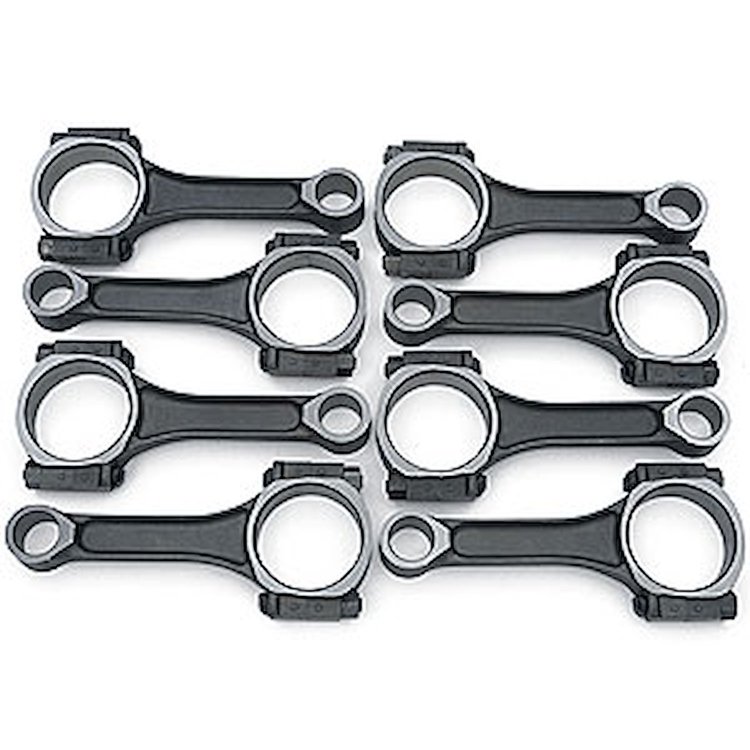

Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-12495071
Connecting Rods, I-Beam PM
$75699
4 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Chevy
- Connecting Rods
- I-Beam PM
- 5.700''
- 8/pkg
Technical Specs: - 2.100 crank journal
- 0.927 pin diameter
- 3/8 bolt
- Press fit pin
- High-quality, powdered metal (PM) connecting rods
- For competition or street applications below 500 horsepower
- Replaces the old "pink rods" and are the same rods used in LT1 andLT4 Corvette engines
Part TypeConnecting Rod
BrandCHEVROLET PERFORMANCE
Package Height9.8
Package Width11.5
Package Length15.0
Weight12.49 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandGM Performance Parts
Rod Journal Diameter2.1 in (53.3 mm)
Connecting Rod MaterialPowdered metal
Advertised Horsepower Rating (Hp)500 hp
Advertised Rpm Rating6,500 rpm
Connecting Rod Bolt Head StyleHex head
Connecting Rod Bolt Material4740 chromoly alloy
Wrist Pin StylePress-fit
Big End Bore Diameter2.225 in (56.515 mm)
QuantitySold as a set of 8
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Connecting Rod Length Center To Center5.7 in (144.78 mm)
Connecting Rod FinishPolished and shot-peened
MagnafluxedYes
Weight Matched SetNo
Fastener Yield Strength (Psi)140,000
Cap Retention StyleThrough-bolt
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
Vendor Part Number12495071
Package Qty1
Package TypeEA
