Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-12498032

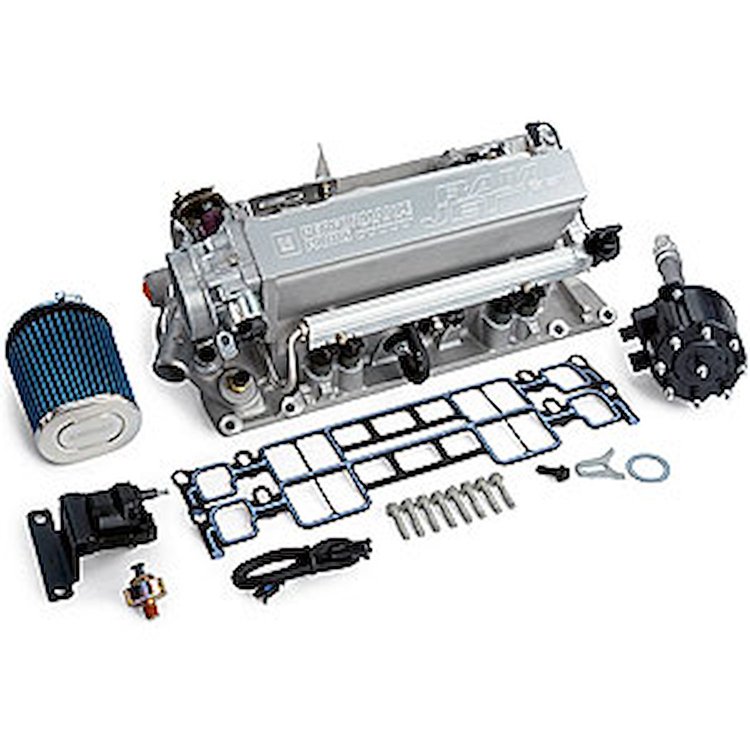

Ram Jet Fuel Injection Manifold Kit (less electronics) Small Block Chevy with Vortec Heads
$2,86295
Ships on 09/15/2026
Lowest Price GuaranteeRam Jet 350 Fuel Injection System
- Ram Jet Fuel Injection Manifold Kit (less electronics)
- Small Block Chevy with Vortec Heads
Kit includes the following (as well as brackets, sensors, bolts, nuts,gaskets, and other small parts): - 88959339 Instruction Manual
- 12489371 Intake Manifold
- 17096144 Throttle Body
- 1115498 Coil
- 12097982 Ignition Wire
- 1104060 Distributor
- 12498951 Air Cleaner
- 12553918 Injector Rail
- 17124248 8 Fuel Injectors
- 16249939 MAP Sensor
- 10456126 Knock Sensor
- 15326386 Engine Temp Sensor
- 17123897 Fuel Pressure RegulatorNotes:
- Does NOT include the ECU or wiring harness, which must be sourced separately.
- Also works with Vortec cylinder heads P/N 12497186 and 12464298.
The Chevrolet Performance Ram Jet 350 Fuel Injection Kit is a retro-fit fuel injection kit that can be used on any small block Chevrolet engine with Vortec heads. This is the same unit used on the Ram Jet 350 crate engine. It does not include the ECU or wiring harness.
Specifications:
- Retro-fit fuel injection kit will fit V-8 engines using Vortec cylinder heads - 809-12529093, 809-12558060, 809-25534421 or 809-25534446
- Must be used with an aftermarket ECU and wiring harness with the proper calibration
- The same as used on Ram Jet 350 engine - 809-12499120.
- MEFI with ECU and Wire Harness Kit - 809-12499116 is not calibrated for anything other than Ram Jet 350.
Part TypeFuel Injection System
Product LineChevrolet Performance Ram Jet 350 Fuel Injection System
BrandCHEVROLET PERFORMANCE
Package Height13.5
Package Width17.1
Package Length29.8
Weight42.8 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Iat Sensor IncludedYes
Venturi Quantity1
Intake MaterialAluminum
Intake FinishNatural
Intake Manifold IncludedYes
Calibration Module IncludedNo
Distributor IncludedYes
Injection StyleMulti-port
Iac Motor IncludedYes
Fuel Pump IncludedNo
Engine Block StyleStock/OEM standard deck
Throttle Body FinishNatural
Throttle Body IncludedYes
Metering StyleSpeed density
Fuel Pressure Regulator IncludedYes
QuantitySold as a kit
Injectors IncludedYes
Tps Sensor IncludedYes
Fuel Rails IncludedYes
Intake Section IncludedComplete
EgrWithout EGR
Ecm IncludedNo
Oxygen Sensor IncludedNo
Injector Size (Lbs./Hr.)22
Throttle Body MaterialCast Aluminum
Map Sensor IncludedYes
Vendor Part Number12498032
Package Qty1
Package TypeEA
