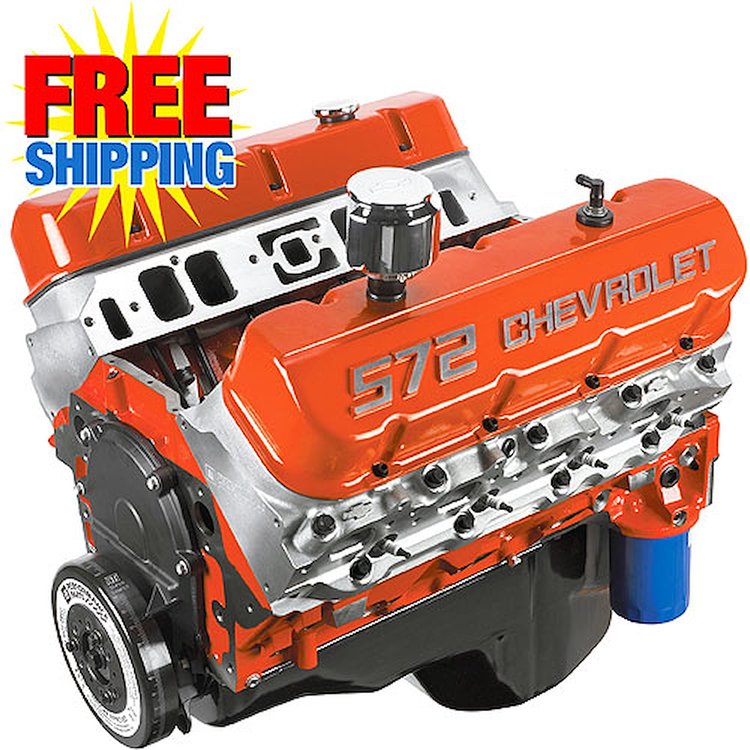

ZZ572/620 Base Engine 621 HP @ 5400 RPM
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-12498792

ZZ572/620 Base Engine 621 HP @ 5400 RPM

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    ZZ572/620 Base Engine
  • 621 HP @ 5400 RPM
  • 645 ft/lbs TQ @ 4200 RPM

    INSTALLATION NOTES:
  • Clutch linkage boss is now drilled and tapped. When usingcast-iron exhaust manifolds, lower head bolts may need to bereplaced with bolts with shorter heads, for clearance
  • Gen VI tall-deck block has machined mechanical fuelpump boss
  • Comes with a 14' automatic transmission flexplate. Requiresinternally balanced flywheel for manual transmission applications
  • Designed for pre-1976 street vehicles or any off-road vehicle
  • Not intended for marine applications

Perfect Foundation For A Pump-Gas Boulevard Shaker!

Proving the adage there's no replacement for displacement, the ZZ572/620 is the ultimate expression of Chevrolet Performance's engineering capability, wrapped up in a soul-stirring combination of performance and attitude. They build the ZZ572/620 with huge 4.560-inch bores and a 4.375-inch stroke to help it deliver 621-horsepower and a stunning 645 lb.-ft. of grunt! Strength comes from a latest-generation tall-deck block casting with four-bolt main caps, forged steel crankshaft, forged steel H-beam connecting rods, forged aluminum pistons, while high-flow aluminum rectangular-port cylinder heads with massive 310cc intake passages, 118cc raised exhaust ports and 118cc combustion chambers process tremendous airflow. A hydraulic roller camshaft with incredible 0.632/0.632-inch lift and 254/264-degree duration specifications optimizes the airflow volume enabled by the large-port heads.

Show More

Horsepower ratings were achieved using a single plane intake manifold, 850cfm 4150-style carburetor and HEI distributor.

ZZ572/620 BASE TECH SPECS:

  • Engine Type: Chevy Tall Deck Big-Block V-8
  • Displacement: 572ci
  • Bore x Stroke: 4.560'' x 4.375''
  • Block: Cast-iron with four-bolt main caps
  • Crankshaft: Forged steel
  • Connecting Rods: Forged steel, shot peened
  • Pistons: Forged aluminum
  • Camshaft Type: Hydraulic roller
  • Camshaft Lift: .632'' intake / .632'' exhaust
  • Camshaft Duration (@.050 in.): 254° intake / 264° exhaust
  • Cylinder Heads: Aluminum rectangular port, 118cc combustion chambers
  • Valve Size: 2.250'' intake / 1.880'' exhaust
  • Compression Ratio: 9.6:1
  • Rocker Arms: Aluminum roller rockers
  • Rocker Arm Ratio: 1.7:1
  • Flexplate: 14'' diameter
  • Recommended Fuel: Premium pump (92 octane)
  • Ignition Timing: 36° Total @ 4000 rpm
  • Maximum Recommended RPM: 6000
  • Balanced: Internal

GM Warranty

Part TypeEngine
Product LineChevrolet Performance ZZ572/620 Base 572ci/621HP Crate Engine
BrandCHEVROLET PERFORMANCE
Package Height37.5
Package Width41.0
Package Length42.0
Weight572.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedNo
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberN/A
Water Pump IncludedNo
EmissionNot Legal
Flexplate IncludedYes
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedNo
Engine Make/SizeChevy Big Block
Flywheel IncludedNo
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower621
Distributor IncludedNo
Camshaft StyleHydraulic roller tappet
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedNo
Harmonic Balancer IncludedYes
QuantitySold individually
Fuel DeliveryN/A
Rpm Power Range3000-6000
Engine BalanceInternal
Compression Ratio9.6:1
Oil Pan IncludedYes
Timing Cover IncludedYes
Spark Plugs IncludedNo
Vendor Part Number12498792
Package Qty1
Package TypeEA
