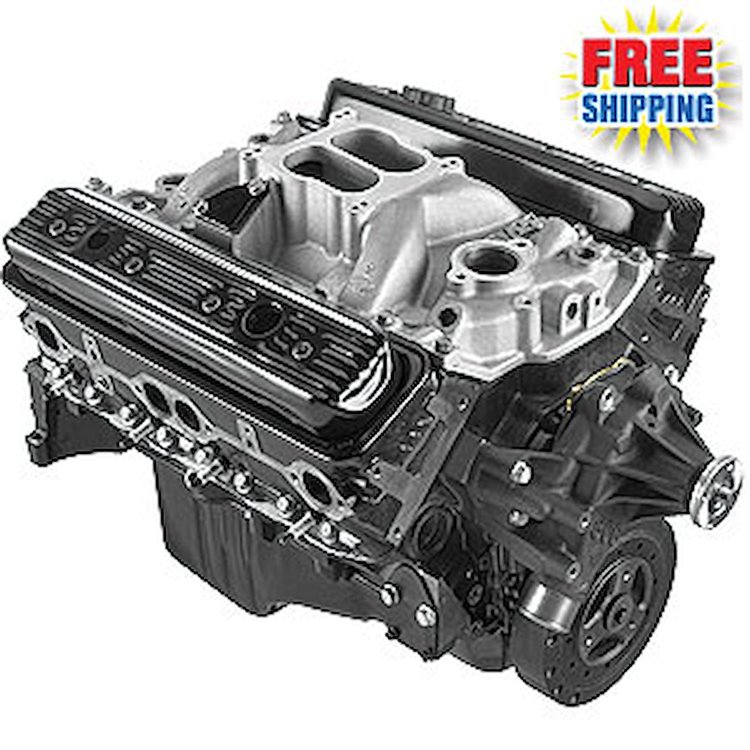

Vehicle Info NeededHT 383 Engine Passenger Side Dipstick
Ships on 09/10/2026
Lowest Price Guarantee- HT 383 Engine
- Passenger Side Dipstick
- Not for Marine Use
Note:Distributor with Melonized Steel Gear 809-88961867 MUST be used
- Engine Type: Chevy Small-Block V-8
- Displacement: 383ci
- Bore x Stroke: 4.000'' x 3.800''
- Block: Cast-iron with 4-bolt main caps
- Crankshaft: 4340 forged steel
- Connecting Rods: Heavy-duty PM steel
- Pistons: Hypereutectic aluminum
- Camshaft Type: Hydraulic roller
- Camshaft Lift: .431'' intake / .451'' exhaust
- Camshaft Duration (@.050 in.): 196° intake / 206° exhaust
- Cylinder Heads: Vortec cast iron; 64cc chambers
- Valve Size: 1.940'' intake / 1.500'' exhaust
- Compression Ratio: 9.1:1
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.5:1
- Water Pump: Cast iron
- Recommended Fuel: Regular Pump (87 octane)
- Ignition Timing: 32° Total @ 4000 rpm
- Maximum Recommended RPM: 5000
- Balanced: External
Extra Cubic Inches Deliver
Greater Torque For Your Truck!
Free Shipping!
Got a pre-1980 GM truck with a tired Small-Block? Forget the rebuild or reconditioned used engine and take your trusty truck's capability to the next level with this big-torque HT383 stroker crate engine. Its extra displacement and unique parts are designed to build a wide, flat torque curve you simply won't get with a stock-type rebuild.
The HT383 features a brand-new engine block with four-bolt mains - an upgrade for most production engines that came with two-bolt mains - along with a forged steel crankshaft and a smooth hydraulic roller camshaft. Its 9.1:1 compression ratio allows it to run on regular unleaded gasoline, too.
The HT383 is delivered with an aluminum intake manifold, ready for you to swap over the accessories from your tired engine. It's also backed by a 24-month/50,000-mile (80,000-km) limited warranty.
HT383 TECH SPECS:
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
