This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

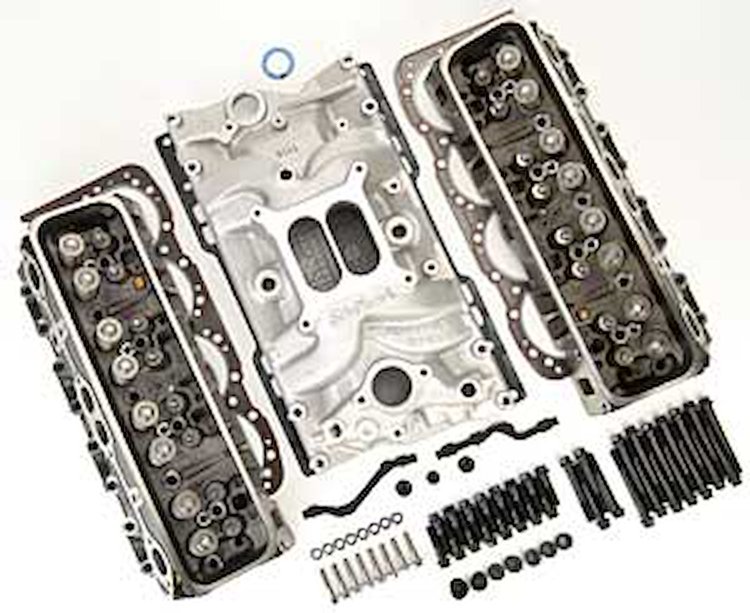

- Vortec Top End Kit Includes:
- Cylinder Heads
- Intake
- Head Gaskets
- Head Bolts
- Intake Gasket
- Intake Bolts
- GM Performance SB-Chevy Cast Iron Vortec Cylinder Heads (2) (809-12558060)
- Edelbrock Performer RPM Vortec Intake Manifold (350-7116)
- JEGS Head Gaskets (2) (555-210041)
- ARP Hi-Performance Head Bolt Kit (070-134-3601)
- JEGS Intake Gaskets (555-210003)
- ARP Intake Bolts/Studs (070-434-2002)

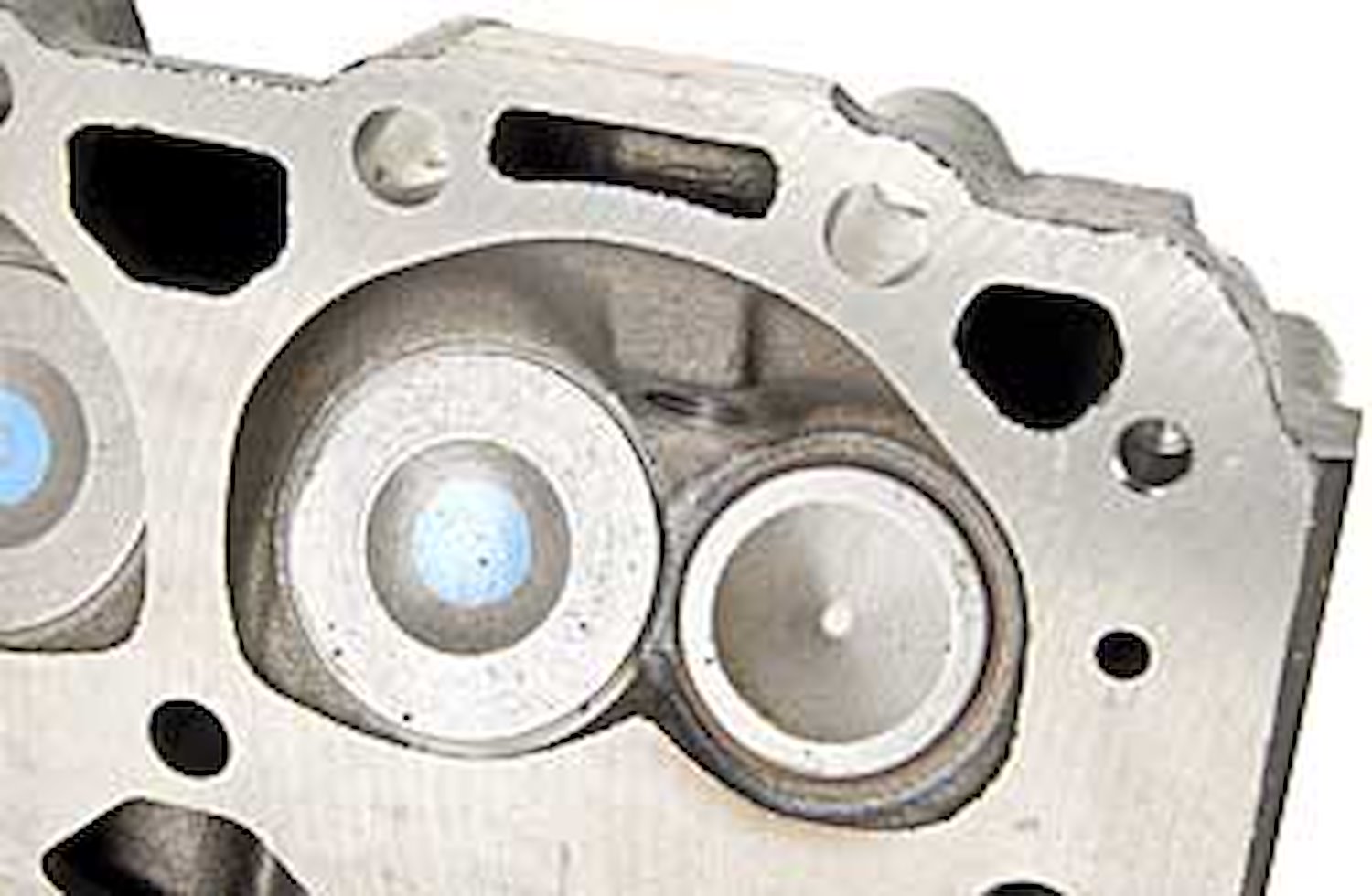

America's favorite high-performance cast iron small block cylinder heads offer big power and bigger value. Chevrolet Vortec Cylinder Heads' fast burn combustion chamber and high-velocity ports combine to produce big horsepower. Vortec Heads can be mildly ported for additional performance and milled up to .040'' for increased compression ratio. The Vortec Heads come with various intake and exhaust valve sizes to complement the high-velocity port design and your performance needs. Vortec Heads outflow Bow Tie Heads right out of the box and are a 20 to 40 horsepower bolt-on increase over earlier cast iron small block heads.
Show More
Vortec Heads require a Vortec-style intake manifold due to an improved manifold mounting flange and gasket design and raised intake ports. Modifying the heads to accept early intake manifolds is not recommended. Vortec Cylinder Heads fit all 1955-Present small blocks except LT1/LT4 reverse coolant flow engines and current LS1-style engines.
JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
