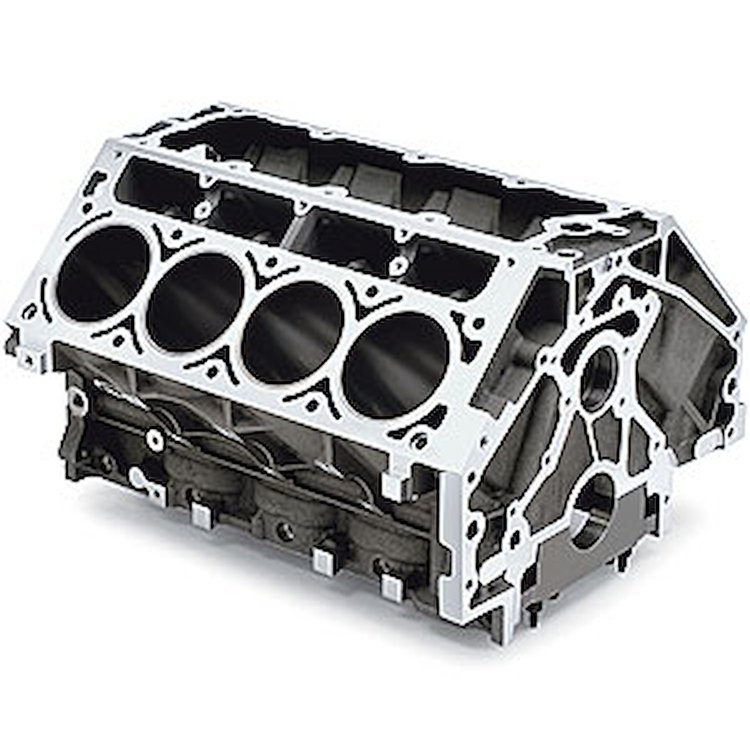

LS1/LS6 5.7L Bare Aluminum Block Direct replacement for 2001-2004 Corvette

Product Discontinued

CHEVROLET PERFORMANCEPART NUMBER: 809-12561166

LS1/LS6 5.7L Bare Aluminum Block Direct replacement for 2001-2004 Corvette

Name: LS1/LS6 5.7L Bare Aluminum Block Direct replacement for 2001-2004 Corvette
Brand: CHEVROLET PERFORMANCE
SKU: 809-12561166
Price: 988.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Aluminum Production LS-Series Engine Blocks

LS1/LS6 5.7L Bare Block

Direct replacement for 2001-2004 LS1 and LS6 Corvette 5.7L
Production 319-T5 aluminum block with iron sleeves
3.898" finished bore (99.0mm)
Tested to over 400 horsepower!

Notes:
Max HP: 450
Max Stroke: 4.00"
Street Use
Production oiling system
Uses OEM casting # 12561168
Use LS1/LS6 cylinder heads only
9.240' deck height
2.56' (Std. LS) crankshaft journal diameter
No provision for Active Fuel Management

Chevrolet took a chance with the LS engine. They stayed true to the pushrod small-block and continued to develop this technology to the point that building a daily-driven, 500-plus HP car is no big deal. The Chevrolet Performance LS Series cylinder blocks are designed specifically for late model small-block engines that run the LS Family cylinder heads. These include the LS1, LS2, LS4, LS6, LS7, LQ4, LQ9, and L76.********

Part TypeEngine Block

Product LineChevrolet Performance LS Series Engine Blocks

BrandCHEVROLET PERFORMANCE

Package Height20.0

Package Width24.0

Package Length28.0

Weight250.0 PG

Part CategoryPerformance Parts

Main Journal TypeOEM

Engine Block StyleStock/OEM standard Deck

Engine Block MaterialAluminum

Cylinder Bore As Shipped3.89 in (98.806 mm)

QuantitySold individually

Raised Cam LocationNo

Freeze Plugs IncludedNo

Deck Height9.24 in (234.696 mm)

Main Bearings IncludedNo

Main Cap MaterialNodular iron

Rear Main Seal Style1-piece

Main Caps IncludedYes

Finished Cylinder BoresNo

Cam Bearings IncludedNo

Main Cap Fasteners IncludedYes

Vendor Part Number12561166

Package Qty1

Package TypeEA

No Questions

No Reviews
