Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-12561721

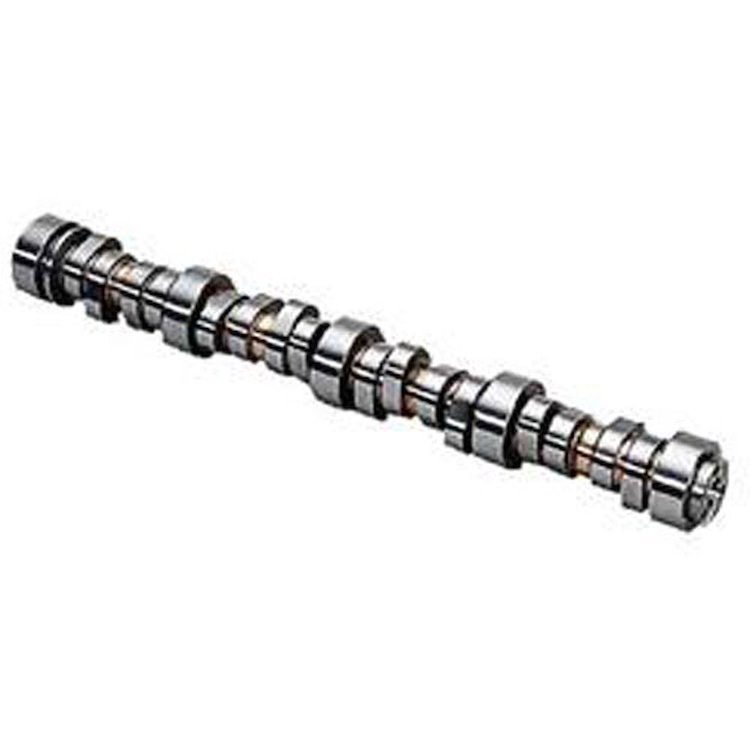

Hydraulic Roller Tappet Camshaft 2002-06 LQ9
$53699
Ships on 09/15/2026
Lowest Price GuaranteeLS-Series Engine
- Hydraulic Roller Camshaft
- 2002-06 LQ9 Cam
- Lift: .467" Int./ .479" Exh.
- Duration:201° Int / 196° Exh. @ .050'' Lift
- 116° Lobe Centerline
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Aggressive-Performance Cams
The camshaft is one of the most important factors in determining an engine's overall performance profile and capability. Chevrolet Performance precision-engineered Hydraulic Roller Camshafts are extensively tested and available for popular GM small block, big block and LS-series engines. To avoid possible engine damage, a distributor with a melonized steel gear must be used with steel camshafts.
Part TypeCamshaft
Product LineChevrolet Performance Hydraulic Roller Camshafts
BrandCHEVROLET PERFORMANCE
Package Height3.4
Package Width3.5
Package Length26.9
Weight10.84 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.467 int./0.479 exh.
Cam StyleHydraulic roller tappet
QuantitySold individually
Intake Valve Lift With Factory Rocker Arm Ratio (I0.467
Advertised Intake Duration207
Basic Operating Rpm RangeStock
Intake Duration At 050 Inch Lift196
Exhaust Duration At 050 Inch Lift201
Computer-Controlled CompatibleYes
Lobe Separation (Deg)116
Advertised Exhaust Duration196
Advertised Duration207 int./196 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.479
Duration At 050 Inch Lift196 int./201 exh.
Valve Springs RequiredYes
Vendor Part Number12561721
Package Qty1
Package TypeEA
