Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-12564824

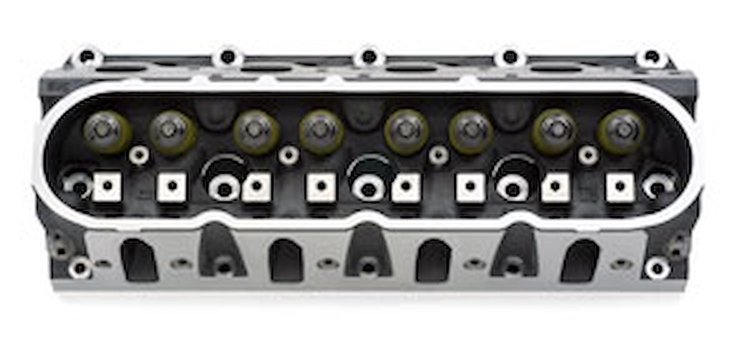

2002-2003 RPO LS6 Cylinder Head Assembly Sold Individually
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- 2002-2003 RPO LS6 Cylinder Head Assembly
- Sold Individually
- Fits 1997-2007 LS Family engine
- 2.00" hollow stem intake
- 1.55" sodium filled exhaust valves
- .570" max valve lift
- 210cc "Cathedral port" intake ports
- Sold individually
This cylinder head is used on 2002 Corvettes with 405 HP RPO LS6. The LS6 cylinder head can be used on any Gen 3 design V8 Block. This LS6 head is emission legal on the 2002-2003 Corvette only.
It includes the following items: - Head - Bare
- Valve Springs
- Cap, Valve Spring, capable of 550' lift cam
- Valve, Intake, Light weight
- Valve, Exhaust, Light weight, sodium filled, hollow stem
- Key, Valve Stem
- Oil Seal, Intake
- Oil Seal, Exhaust
- 70cc D-shaped exhaust ports
- 65cc combustion chambers
- Bare head P/N 12564825 available separately
The Chevrolet Performance L76/L92 Aluminum Cylinder Head is designed to fit any LS family engine with a four inch or larger bore. The LS-Series family of engines has continued Chevrolet Performance's tradition of raising the power potential of the legendary small-block V-8. The great cylinder head airflow potential has been a key factor in the performance of these engines. This aluminum production style head is no exception with great out-of-box flow potential and is a true bolt-on replacement or performance upgrade!
Show More
Features:
- Manufactured from 319-T5 aluminum alloy
- 2.165" solid stem intake valves
- 1.590" solid stem exhaust valves
- 15 degree valve angle
- .510" max valve lift
- As-cast 260cc L92 style intake ports
- D-shaped exhaust ports
- As-cast 70cc combustion chambers
- 14mm, 5/8" hex, 3/4" reach, taper-seat Angled spark plug
- Bolt-down-type rocker arms
- Center-bolt valve cover hold-downs
- Fits any LS family engine with 4.000" bore or larger
| Valve Lift | Intake Flow | Exhaust Flow |
| .200 | 151 | 111 |
| .300 | 208 | 152 |
| .400 | 256 | 174 |
| .500 | 294 | 183 |
| .600 | 316 | 189 |
Product LineChevrolet Performance L76/L92 Aluminum Cylinder Head
BrandCHEVROLET PERFORMANCE
Package Height5.9
Package Width8.6
Package Length21.0
Weight24.55 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
