Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-12677151

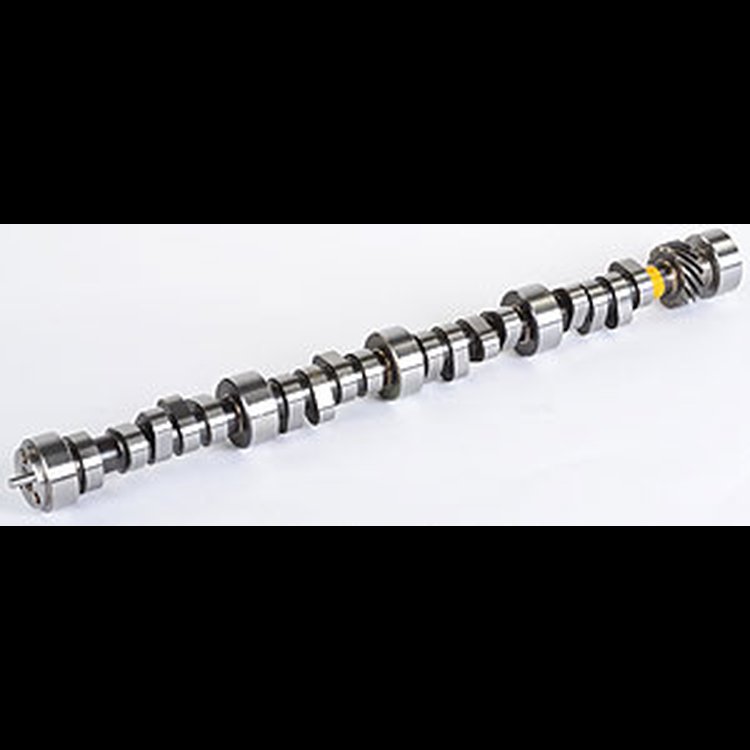

Hydraulic Roller Tappet Camshaft Small Block Chevy
$59008
Ships on 11/10/2026
Lowest Price GuaranteeSmall Block Engine
- Hydraulic Roller Camshaft
- Small Block Chevy
- SP350/357 Cam
- Lift: .473'' Int. / .473'' Exh.
- Duration: 215° Int / 223° Exh. @ .050'' Lift
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Aggressive-Performance Cams
The camshaft is one of the most important factors in determining an engine's overall performance profile and capability. Chevrolet Performance precision-engineered Hydraulic Roller Camshafts are extensively tested and available for popular GM small block, big block and LS-series engines. To avoid possible engine damage, a distributor with a melonized steel gear must be used with steel camshafts.
Part TypeCamshaft
Product LineChevrolet Performance Hydraulic Roller Camshafts
BrandCHEVROLET PERFORMANCE
Package Height3.5
Package Width3.5
Package Length27.5
Weight10.345 PG
Part CategoryPerformance Parts
Volume (Cu In)114.88cu in
Valve Lift With Factory Rocker Arm Ratio0.473 int./0.473 exh.
Cam StyleHydraulic roller tappet
Intake Duration At .050 Inch Lift215
Camshaft Gear Attachment3-bolt
Width (In)4.7
QuantitySold individually
Lobe Separation (Degrees)108
Basic Operating Rpm RangeIdle-6,000
Intake Duration At 050 Inch Lift215
Height (In)0.85
Exhaust Duration At 050 Inch Lift223
Exhaust Valve Lift With Factory Rocker Arm Ratio12.0142
Length (In)1.55
Intake Valve Lift With Factory Rocker Arm Ratio0.473 in.
Exhaust Duration At .050 Inch Lift223
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Cam TypeHydraulic Roller
Weight (Lb)0.38
Duration At 050 Inch Lift215 int./223 exh.
Vendor Part Number12677151
Package Qty1
Package TypeEA
