Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-12677741K1

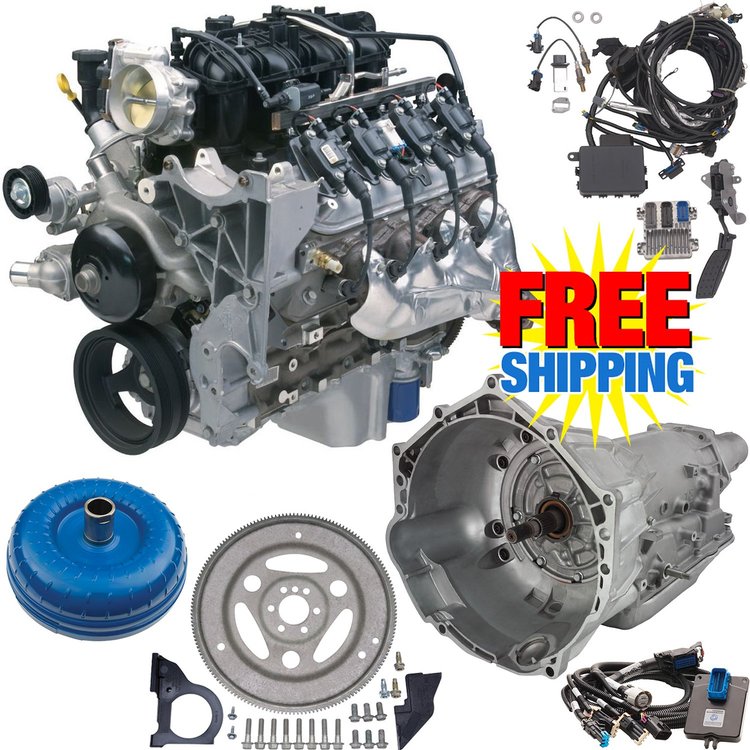

L96 6.0L Truck Connect & Cruise Powertrain System 4L65-E 2WD
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
L96 6.0L Engine with 4L65-E Transmission 2WD Application
L96 6.0L Truck Engine Connect & Cruise Powertrain System360 HP @ 5400 RPM 380 ft/lbs TQ @ 4200 RPM Remanufactured Hydra-Matic 4L65-E Four-Speed Automatic Transmission 2400-2800 RPM Stall Torque Converter 2WD Applications
L96 6.0L TECH SPECS:
- Engine Type: LS-Series Gen IV V8 Small Block
- Displacement: 364ci (6.0L)
- Bore x Stroke: 4.000" x 3.622" (101.6mm x 92mm)
- Block: Cast-iron with 6-bolt cross-bolted main caps
- Crankshaft: Nodular Iron with 6-bolt flange
- Connecting Rods: Powdered metal
- Pistons: Hypereutectic aluminum with polymer coating, floating wrist pins
- Camshaft Type: Hydraulic roller (12626660)
- Camshaft Duration at .050": 193° Intake / 200° Exhaust
- Cylinder Heads: Aluminum L76/L92
- Valve Size: 2.00" Intake / 1.56" Exhaust
- Compression Ratio: 9.6:1
- Rocker Arms: 1.7:1 Ratio, Investment Cast, Roller Trunnion
- Recommended Fuel: Regular unleaded pump
- Maximum Recommended RPM: 6000
- Reluctor Wheel: 58X
- Balance: Internal
INSTALLATION NOTES:
- Includes electronic throttle body
- Not intended for marine applications
Part TypeEngine
BrandCHEVROLET PERFORMANCE
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
