Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-12679002

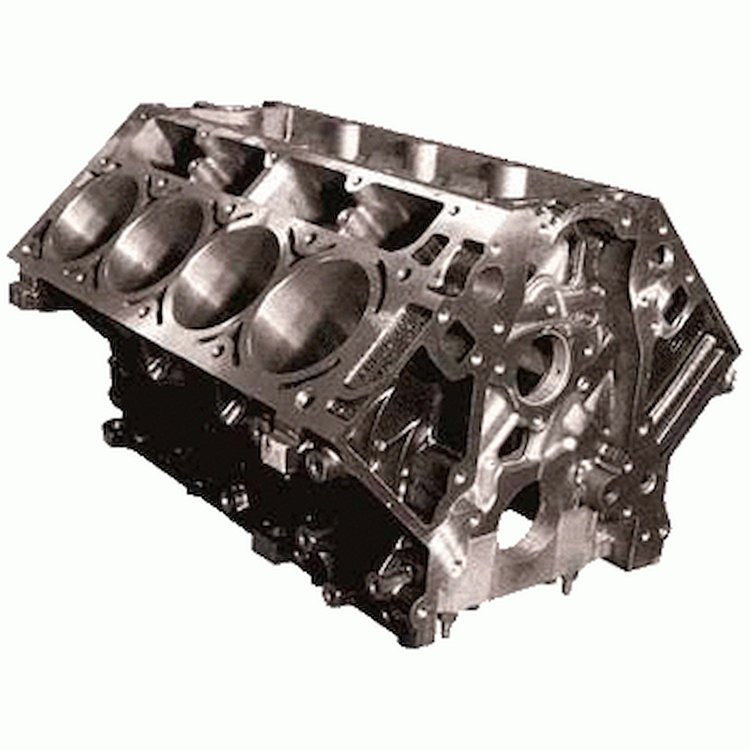

LQ4/LQ9 6.0L Gen III Cast-Iron Bare Engine Block
$2,28025
Truck Freight
Ships on 09/14/2026
Lowest Price GuaranteeCast-Iron Production LS-Series Engine Blocks
Gen III 6.0L Bare BlockDirect replacement for Gen III Block LQ4 & LQ9 Production cast iron block Production oiling system 6-bolt main bearing caps 4.000" finished bore (101.60mm) 9.240" deck height
Whether you're building a mild street engine or an Outlaw racing engine, starting with a strong LS cylinder block brings the assurance that you'll make the power you need with a durable foundation.
- Material: Cast Iron
- Weight: 212 lbs
- Main Caps: Powder metal - 4 bolt verticle drilled and two horizontal cross bolts
- Deck Height: 9.240"
- Deck Finish Machined: Yes
- Finished Bore Size (as shipped): 4.000"
- Bore finish: Finish Honed
- Cylinder wall thickness: 0.280"
- Main Brg Journal size: 2.56"
- Dipstick hole drilled: RH only
- Crank Seal type: 1-piece insert
- Max Stroke: 3.622"
- Cam Bearing finished cam bore (W/brgs): 2.1688 - 2.1678"
Part TypeEngine Block
BrandCHEVROLET PERFORMANCE
Package Height23.0
Package Width24.0
Package Length38.0
Weight225.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
