Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19155066
F-Body Style Accessory Drive System With Power Steering, With A/C
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
LS Engine Serpentine Drive Kits
- F-Body Style Accessory Drive System
- With Power Steering, With A/C
- Bottom Mounted Alternator
- Fits all Non-LSA/LS9 LS engines
- Direct Bolt-on for LS3 & LS7 engines
NOTE: - Deluxe kit includes all of the components and hardware necessary to install on an engine with air conditioning.
- Air conditioning has separate belt; to delete air conditioning, do notinstall the belt, compressor or tensioner
- Includes 150Amp Alternator, Power steering pump, mounting brackets, pullies, hardware, belt, tensioner etc. Kit uses OEM 2006-2007 Cadillac CTSV components.
- This kit is was originally designed for CTS-V type engine bays and is taller and narrower than the p/n 809-19155167 kit. Measurements from the crank center line: vertically 17.0" high, drivers side is 12.0" wide, and passenger side is 12.5" wide.
- Most harmonic balancers do not line up correctly with the accessorydrive system; damper P/N 809-12674582 is strongly recommended.
- Will not work with a cam-phased engine.
- Will not work on LS327 with cast iron block
- Water pump P/N 809-89018052 NOT Included with kit
- Includes fixed displacement compressor
- Use p/n 809-19299069 for A/C add-on if Variable Displacement Compressor is needed.
- If using a Russell p/n 799-648060 16mm X1.5mm O-ring adapter on the power steering pump in this kit, approximately .060" will need to be machined off of the back face of the pulley to clear the adapter fitting. The pump will supply 2 gallons per minute @ 1640/1740 PSI

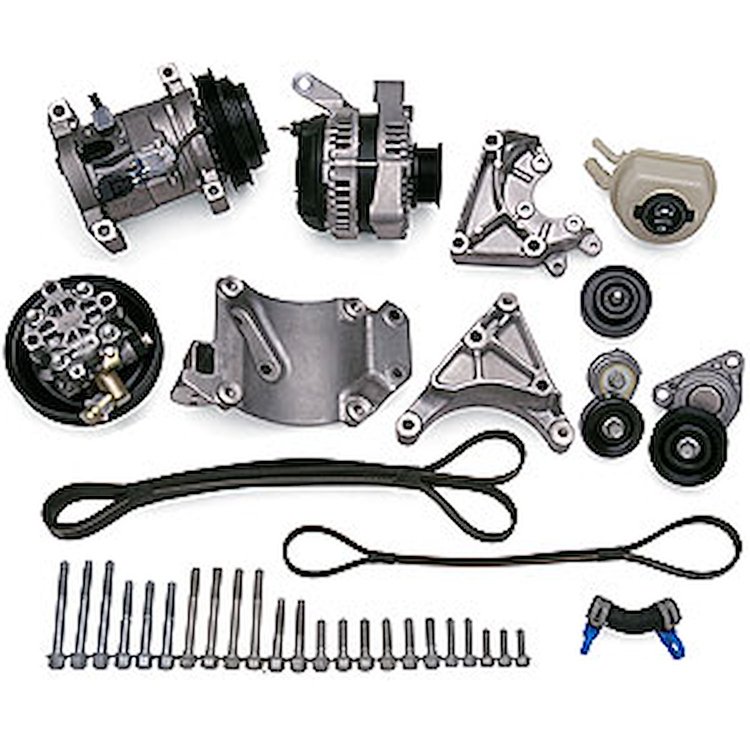

The system includes: - p/n 809-12578548 (1) Bracket-Air Conditioning
- p/n 809-19130461 (1) Compressor-Air Conditioning
- p/n 809-12595289 (1) Tensioner-Air Conditioning Belt
- p/n 809-12578549 (1) Belt-Air Conditioning Compressor
- p/n 809-12578551 (1) Bracket-Power Steering Pump
- p/n 809-21997867 (1) Pump-Power Steering
- p/n 809-12578552 (1) Pulley-Power Steering Pump
- p/n 809-21997866 (1) Reservoir-Power Steering Fluid
- p/n 809-21997868 (1) Hose-Power Steering Fluid Reservoir With Clamps
- p/n 809-12578550 (1) Bracket-Generator
- p/n 809-25766345 (1) Generator
- p/n 809-12568996 (1) Pulley-Belt Idler
- p/n 809-12569301 (1) Tensioner-Drive Belt
- p/n 809-12578553 (1) Belt-Water Pump/Generator/ Power Steering
- p/n 809-11515768 (6) Bolt, Transaxle Br
- p/n 809-11516360 (4) Bolt - 10 x 1.50 x 90mm
- p/n 809-11518637 (3) Bolt - Hvy HX Acorn Flg Hd
- p/n 809-11518630 (2) Bolt - Hvy HX Acorn Flg Hd
- p/n 809-11518075 (3) Bolt - Hex Flg HD
- p/n 809-11518633 (3) Bolt, Gen
- p/n 809-11515760 (2) Bolt Hvy Hex Flg
Part TypeDrive Belt
BrandCHEVROLET PERFORMANCE
Package Height18.0
Package Width19.0
Package Length21.0
Weight53.0 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Idler Brackets IncludedYes
Idler/Tensioner IncludedYes
Air Conditioning Bracket IncludedYes
Alternator Pulley IncludedYes
Alternator Nose Cover IncludedNo
Idler Pulley GroovesNon-ribbed
Bracket MaterialAluminum
Pulley Set StyleStandard ratio
Crankshaft Nose Cover IncludedNo
Water Pump Pulley IncludedNo
Alternator Brackets IncludedYes
Power Steering Pulley AttachmentPress fit
Pulley StyleSerpentine Pulley
Pulley FinishBlack
Crankshaft Pulley IncludedNo
QuantitySold as a kit
Power Steering Brackets IncludedYes
Alternator Pulley Grooves6-groove, serpentine
Air Conditioning Pulley Grooves6-groove, serpentine
Air Conditioning Cover IncludedNo
Air Conditioning Pulley IncludedYes
Power Steering Pulley IncludedYes
Alternator Fan IncludedYes
Power Steering Pump StyleRemote reservoir
Power Steering Pulley Grooves6-groove, serpentine
Idler Cover IncludedNo
Bracket FinishNatural
Pulley MaterialSteel
Water Pump Nose Cone IncludedNo
Vendor Part Number19155066
Package Qty1
Package TypeEA
