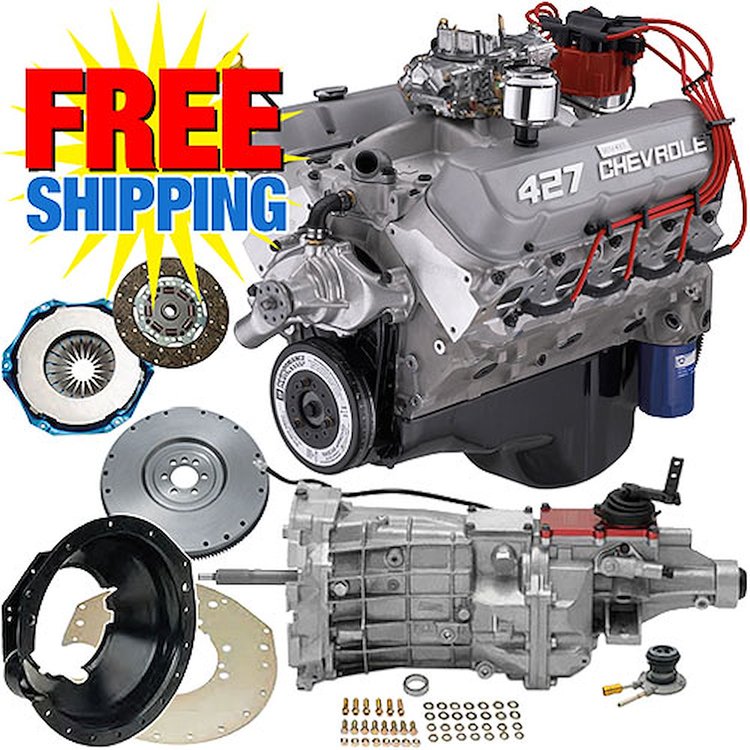

Anniversary Edition 427 All Aluminum 427ci Connect & Cruise Powertrain System 480 HP @ 5800 RPM

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

480 HP @ 5800 RPM
490 ft/lbs TQ @ 3800 RPM
T56 Super Magnum Six Speed Transmission

ANNIVERSARY EDITION 427 ALL-ALUMINUM 427ci TECH SPECS:
Engine Type: Aluminum Chevy Big-Block V-8
Displacement: 427ci
Bore x Stroke: 4.250' x 3.750'
Block: Cast-Aluminum with four-bolt main caps
Crankshaft: Forged steel
Connecting Rods: Forged steel
Pistons: Forged aluminum
Camshaft Type: Hydraulic roller
Camshaft Lift: .527' intake / .544' exhaust
Camshaft Duration (@.050 in.): 224° intake / 234° exhaust
Cylinder Heads: Aluminum oval port, 110cc combustion chambers
Valve Size: 2.190' intake / 1.880' exhaust
Compression Ratio: 10.1:1
Rocker Arms: Aluminum roller style
Rocker Arm Ratio: 1.7:1
Distributor: HEI type
Carburetor: 770-cfm
Water Pump: Aluminum, short-style
Spark Plugs and Wires: Included
Flexplate: 14' diameter, internally balanced
Recommended Fuel: 92 octane
Ignition Timing: Base 10° BTDC, 36° Total
Maximum Recommended RPM: 6400
Balanced: Internal

INSTALLATION NOTES:

Due to crate fitment, the carburetor is shipped in a separate box and needs to be installed by an engine installer
Requires addition of starter and fuel pump (not included)
Clutch linkage bosses are drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads for clearance
Comes with an internally balanced 14-inch automatic transmission flexplate
Designed for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
