Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

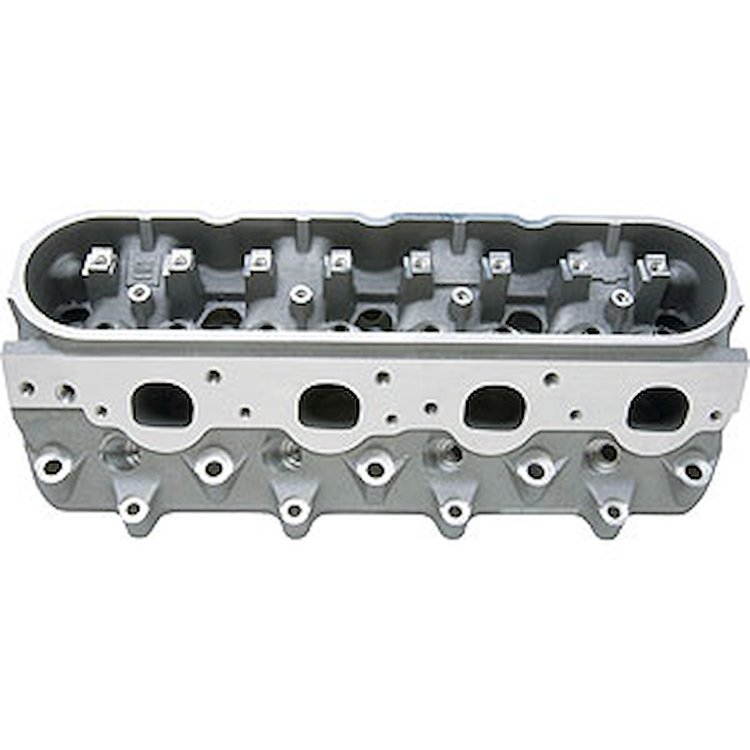

LSX-LS7 Cylinder Head
- LSX-LS7 "As-Cast" Cylinder Head
- 270cc Intake Port / 85cc Exhaust Port
- 70cc Combustion Chamber
- 2.200'' Intake Valve / 1.610'' Exhaust Valve
- Bare, Sold Individually
Technical Notes: - 6-bolt per cylinder bolt pattern
- LS7 style rectangle port design
- Assembled with 2.200' titanium intake and 1.610' sodium-filledexhaust valves
- 12 degree valve angle
- Minimum 4.100' bore
- 270cc 'as-cast' intake ports, 85cc 'as-cast' exhaust ports
- 70cc 'as-cast' combustion chambers
- Handles .650' lift with premium springs
- Uses LS7 rocker arms/LS7 bolts
Extending the performance range of the LSX platform are Chevrolet Performance's new, 6-bolt LSX cylinder heads. Many are capable of flowing more than 400 cfm and their 6-bolts-per-cylinder clamping design gives them bomb-proof strength. Your horsepower-building potential is nearly unlimited with LSX heads. These aluminum masterpieces of performance feature port and chamber designs based on popular and performance-proven production-style heads, such as the LS3/L92 and LS7 heads. They are easily identified by the engraved LSX logo on the ends.
Show More
Features include:
- All LSX heads are made of 356-T6 aluminum and feature a 5/8'' thick deck that allows plenty of room for builder-specified combinations.
- Extra material cast in the port areas to accommodate professional porting
- Uses 11mm (10) and 8mm (13) head bolts
- 6-bolt per cylinder bolt pattern
- LS7 style rectangle port design
- 12 degree valve angle
- Uses LS7 rocker arms/LS7 bolts
- Accommodates production valvetrain components (except for Drag Race and Circle Track heads)
- Includes premium beehive-type valve springs (except for Drag Race and Circle Track heads)
- Valve guides for 8mm valve stems (except for Drag Race and Circle Track heads)
Product LineChevrolet Performance LSX-LS7 Cylinder Heads
BrandCHEVROLET PERFORMANCE
Package Height10.3
Package Width12.3
Package Length24.0
Weight30.25 PG
Part CategoryPerformance Parts
Vendor Part Number19201806
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
