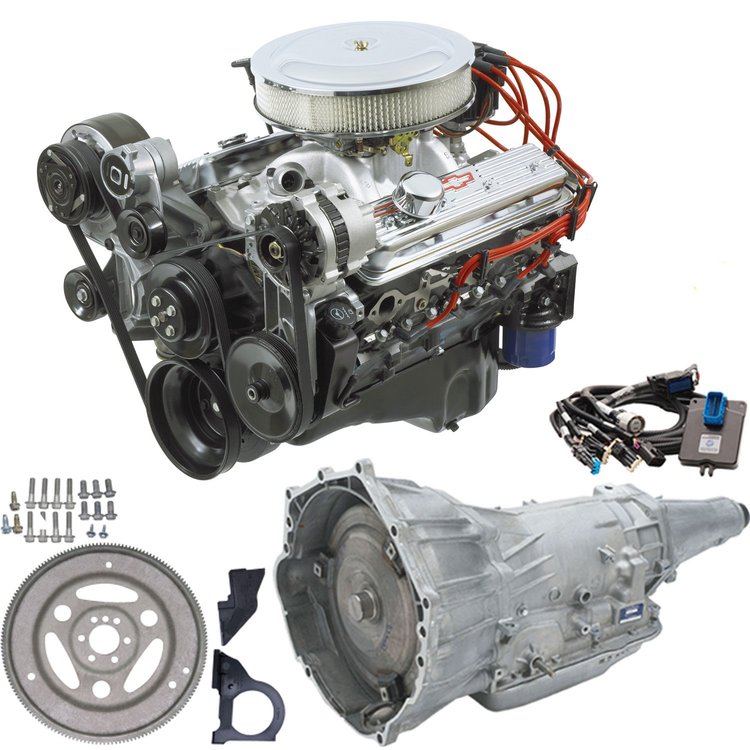

350 HO Turn-Key 350ci TECH SPECS:

• Engine Type: Small-Block V-8
• Displacement: 350ci (5.7L)
• Bore x Stroke: 4.000' x 3.480'
• Block: Cast-iron with four-bolt main caps
• Crankshaft: Nodular iron
• Connecting Rods: Powdered metal steel
• Pistons: Cast aluminum
• Camshaft Type: Hydraulic flat tappet
• Camshaft Lift: .435' intake / .460' exhaust
• Camshaft Duration (@.050 in.): 212° intake / 222° exhaust
• Cylinder Heads: Vortec cast iron w/ 64cc combustion chambers
• Valve Size: 1.94' intake / 1.50' exhaust
• Compression Ratio: 9.0:1
• Rocker Arms: Stamped steel
• Rocker Arm Ratio: 1.5:1
• Recommended Fuel: Premium pump
• Maximum Recommended rpm: 5100
• Balanced: External
• Intake Manifold: Dual plane
• Water Pump: Cast iron, long-style
• Flexplate: 12.750", 153-tooth, External balance



  INSTALLATION NOTES:
• Comes with externally balanced flexplate for automatic transmission; requires externally balanced flywheel for manual transmission
• Has right-side oil dipstick
• Requires fuel line from the fuel pump to carburetor
• Fuel pump pressure is pre-set; fuel pressure regulator not required
• Some assembly and minor engine tuning required
• Designed for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications
