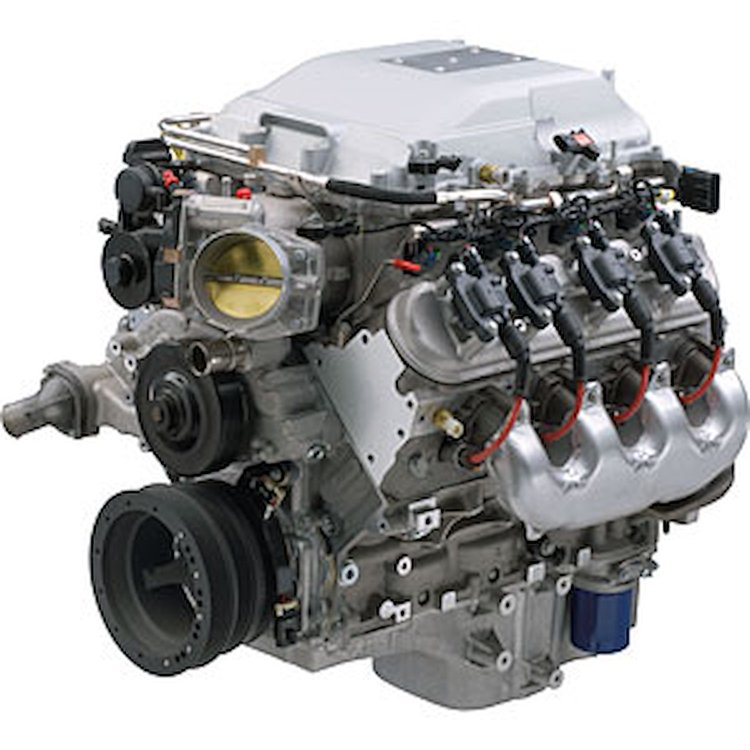

Cadillac LSA CTS-V Engine 556HP / 551TQ
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19211708

Cadillac LSA CTS-V Engine 556HP / 551TQ

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    Cadillac LSA CTS-V Engine
  • 556HP / 551TQ
  • 6.2L (376 ci)
  • Supercharged
  • Intercooled

    Free Shipping!

    The 2009-13 Cadillac CTS-V LSA supercharged engine produces 556 HP and 551 ft/lbs of torque. Enough power to propel the CTS-V from 0 to 60 in 3.9 seconds and a Cadillac record of 7:59:32 around the Nurburging, making the CTS-V the fastest production sedan in the world and capable of 191 mph top speed when using the manual transmission. In all, the LSA offers a tremendously powerful supercharged engine package with the sophistication necessary to be Cadillac.

    Chevrolet Performance is proud to offer this fully dressed production engine. While it shares the 6.2L displacement of other LS engines, this engine is built with powdered metal rods, forged crankshaft, and 9.1 comp ratio. The supercharger has a single brick intercooler in the intake with a very low profile to optimize clearance. This engine package has a broad torque curve with serious power on tap for your high-performance needs!

    Specifications
  • Engine Type: LS Series Gen IV Small Block V8
  • Displacement: 6.2L 376 ci
  • Bore x Stroke: 4.06" x 3.62"
  • Block: Cast aluminum with 6-bolt cross-bolted main caps (P/N 12627939)
  • Crankshaft: Forged Steel (P/N 12603616)
  • Connecting Rods: Powdered Metal (P/N 12604857)
  • Pistons: Hypereutectic Aluminum (P/N 12625119)
  • Camshaft Type: Hydraulic Roller (P/N 12605220)
  • Valve Lift: .480" Intake/.480" Exhaust
  • Camshaft Duration at .050": 198° Intake/216° Exhaust
  • Cylinder Heads: Aluminum L92 style port as cast with 68cc chambers (P/N 12604860)
  • Valve Size: 2.16 Intake/1.59 Exhaust
  • Compression Ratio: 9.1 to 1
  • Rocker Arms: 1.7 to 1 Ratio, Investment Cast, Roller Trunnion (Intake P/N 12569167, Exhaust P/N 10214664)
  • Recommended Fuel: 92 Octane
  • Maximum Recommended RPM: 6600
  • Reluctor Wheel: 58X
  • Balance: Internal

    Note: Electronics and accessory drive components not included

    GM Warranty

Product LineChevrolet Performance LSA 6.2L/556HP CTS-V Supercharged Engine
BrandCHEVROLET PERFORMANCE
Package Height36.0
Package Width36.0
Package Length40.0
Weight455.0 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
