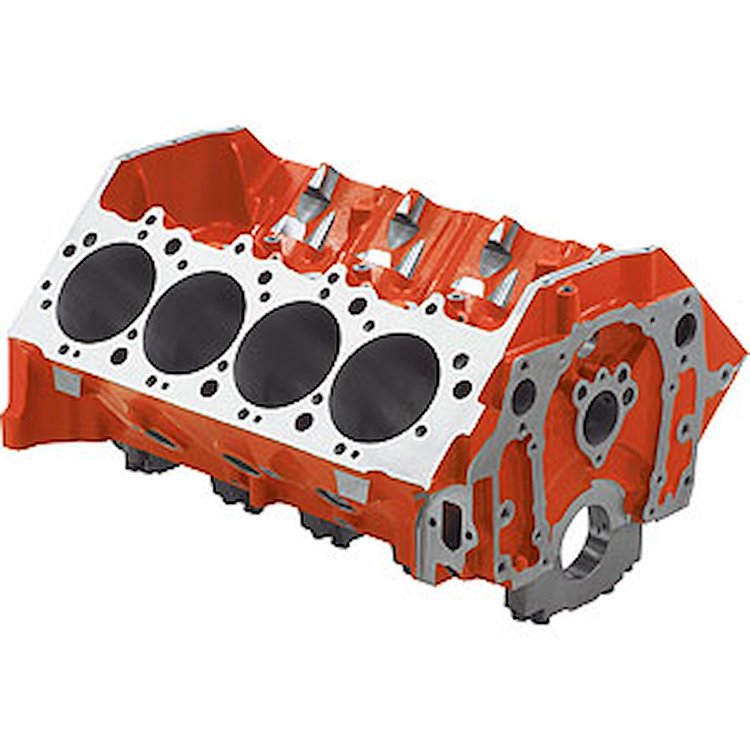

572 Bow Tie Sportsman Engine Block (1-Piece Rear Main Seal)

Name: 572 Bow Tie Sportsman Engine Block (1-Piece Rear Main Seal)
Brand: CHEVROLET PERFORMANCE
SKU: 809-19212195
Price: 3918.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Tall Deck

Big Block Chevy (1-Piece Rear Main Seal)
Tall Deck: 10.200''
4.560'' Finish Bore (4.600'' Maximum)
Uses Mark IV Front Cover & Oil Pan
5 Windage Tray Bolts Installed
Nodular Iron 4-Bolt Main
Main Bolts: 16°
Bore Range: 4.560' to 4.600'
Fuel Pump Boss: Yes
Cylinder Wall: Siamese
Crankshaft Journal Size: 2.750'
Oiling System Configuration: Wet
Maximum Crankshaft Stroke: 4.500'
Block Weight: 263 pounds
Maximum Tested Horsepower: 800 HP

Part TypeEngine Block

BrandCHEVROLET PERFORMANCE

Package Height20.0

Package Width21.0

Package Length29.0

Weight336.0 PG

Part CategoryPerformance Parts

Maximum Bore Diameter4.6 in (116.84 mm)

Engine Block Weight (Lbs.)263

Deck Height10.2 in (259.08 mm)

ToolStroker Combinations

Vendor Part Number19212195

Package Qty1

Package TypeEA
