Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

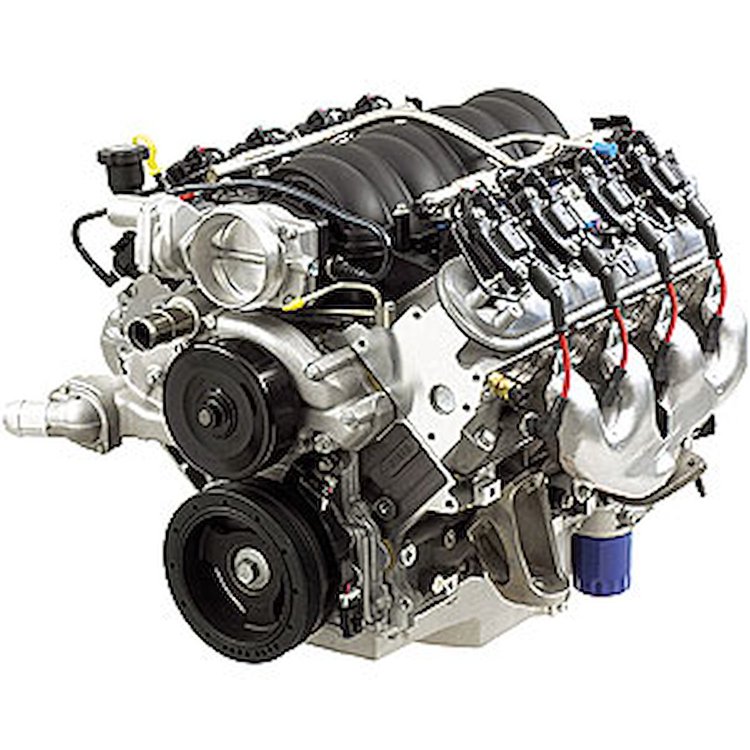

- LS3 ENGINE 376CI/480HP
Block (P/N 809-12584727): Cast Aluminum with 6-bolt, cross-bolted main caps
Bore x Stroke (in): 4.06 x 3.62 (103.25 x 92mm)
Camshaft duration (@.050 in): 219 degree intake / 228 degree exhaust
Camshaft type (P/N 809-88958733): Hydraulic roller
Compression ratio: 10.7:1
Connecting rods (P/N 809-12617570): Powdered metal
Crankshaft (P/N 809-12597569): Powdered metal
Cylinder heads (P/N 809-12598594): LS3 rectangle port; as cast with 68cc chambers
Displacement (cu in): 376 cu in (6.2L)
Engine type: LS Series Gen IV small-block V8
Maximum recommended RPM: 6600
Part number: 809-19171224
Pistons (P/N 809-19165089): Hypereutectic aluminum
Recommended fuel: 92 octane
Reluctor wheel: 58x
Rocker arm ratio: 1.7:1
Rocker arms (P/N 809-12569167 int): Investment cast, roller trunnion
Valve lift (in): .525" intake / .525" exhaust
Balanced: Internal
Valve size (in): 2.16 int / 1.59 exhaust
BrandCHEVROLET PERFORMANCE
Package Height37.0
Package Width40.0
Package Length43.0
Weight480.0 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
