Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19243524

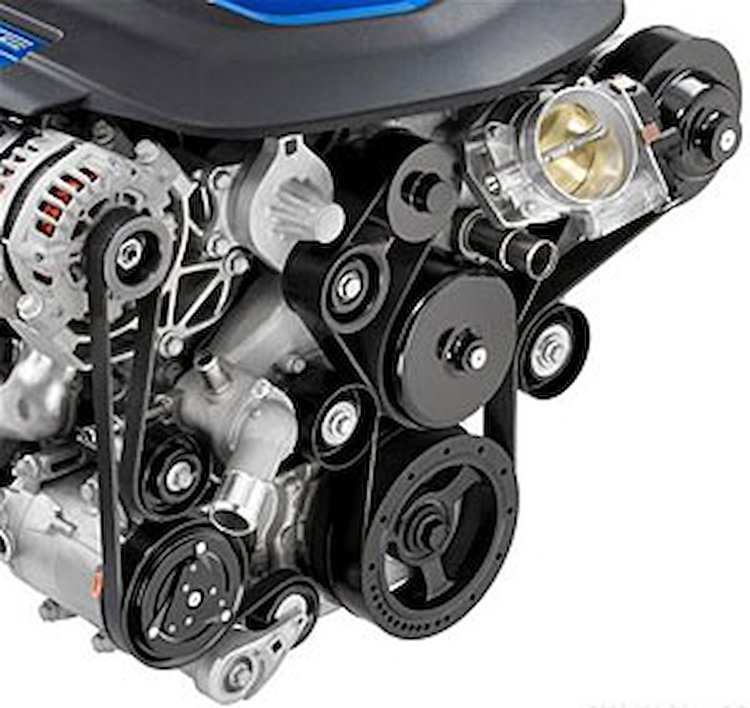

LS9/ZR1 Corvette Accessory Drive System With Power Steering, With A/C
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
LS Engine Serpentine Drive Kits
- LS9/ZR1 Corvette Accessory Drive System
- With Power Steering, With A/C
- Fits all LS9 engines
Notes: - This kit includes the generator bracket and bolts that are alreadyattached to a Chevrolet Performance LS9 Crate Engine. This bracketmust be bolted on the cylinder head prior to installing the water pump.
- If you do not have a Chevrolet Performance LS9 Crate Engine, you will alsoneed to purchase separately from a your local Chevrolet parts department the LS9 water pump kit (12622036), theLS9 lifter valley cover (12605719) and LS9 coolant air bleeds (12606242and 12606243) to use this kit.
- If you have a Chevrolet PerformanceLS9 Crate Engine, you do not need any of these additional parts.Kit Includes:
- Qty 1 Part #15857665 - Power Steering Pump Assembly
- Qty 2 Part #11588733 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #12625875 - Power Steering Pump Bracket Assembly
- Qty 4 Part #11518634 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #15285644 - Power Steering Reservoir Fluid Assembly
- Qty 1 Part #12598653 - Pulley Assembly Belt Idler
- Qty 1 Part #11518631 - Bolt-Drive Belt Tensr
- Qty 1 Part #12598654 - Pulley Assembly Belt Idler
- Qty 1 Part #11588743 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #12623061 - Tensioner Assembly-Drv Belt
- Qty 3 Part #11515767 - Bolt-Trans Br Brkt
- Qty 1 Part #12602288 - Bracket-A/C Compressor
- Qty 1 Part #12556447 - Stud-Special M10 X 1.5 X 127
- Qty 1 Part #11571051 - Bolt-Hex Washer Hd
- Qty 1 Part #12623062 - Belt-Tensioner Assembly A/C Compressor
- Qty 1 Part #12568996 - Pulley Assembly Belt Idler
- Qty 1 Part #89019076 - A/C Compressor Assembly
- Qty 1 Part #11514597 - Nut-Gen
- Qty 1 Part #12552922 - Bolt/Screw A/C Compressor
- Qty 2 Part #11518637 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #11588754 - Bolt-Hvy Hex Acorn Flg Hd
- Qty 1 Part #25888947 - Generator Assembly
- Qty 2 Part #11518630 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 2 Part #11571051 - Bolt-Hex Washer Hd
- Qty 1 Part #12602289 - Bracket-Gen & Drive Belt Tensioner
- Qty 2 Part #11518634 - Bolt-Hvy Hex Acorn Flg Hd
- Qty 2 Part #11515767 - Bolt-Trans Br Bracket
- Qty 1 Part #12637321 - Belt-Supercharger & w/Pump & P/S Pump
- Qty 1 Part #12627522 - Belt-A/C Compressor
- Qty 1 Part #19243526 - Instructions
Part TypePulley Kit
BrandCHEVROLET PERFORMANCE
Package Height13.0
Package Width20.0
Package Length20.0
Weight75.0 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Idler Brackets IncludedYes
Idler/Tensioner IncludedYes
Air Conditioning Bracket IncludedYes
Alternator Pulley IncludedYes
Alternator Nose Cover IncludedNo
Idler Pulley GroovesNon-ribbed
Bracket MaterialAluminum
Pulley Set StyleStandard ratio
Crankshaft Nose Cover IncludedNo
Water Pump Pulley IncludedNo
Alternator Brackets IncludedYes
Power Steering Pulley AttachmentPress fit
Pulley StyleSerpentine Pulley
Pulley FinishBlack
Crankshaft Pulley IncludedNo
QuantitySold as a kit
Power Steering Brackets IncludedYes
Alternator Pulley Grooves6-groove, serpentine
Air Conditioning Pulley Grooves6-Groove, serpentine
Air Conditioning Cover IncludedNo
Air Conditioning Pulley IncludedYes
Power Steering Pulley IncludedYes
Alternator Fan IncludedYes
Power Steering Pump StyleRemote reservoir
Power Steering Pulley Grooves6-groove, serpentine
Idler Cover IncludedNo
Bracket FinishNatural
Pulley MaterialSteel
Water Pump Nose Cone IncludedNo
Vendor Part Number19243524
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
