Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19257460

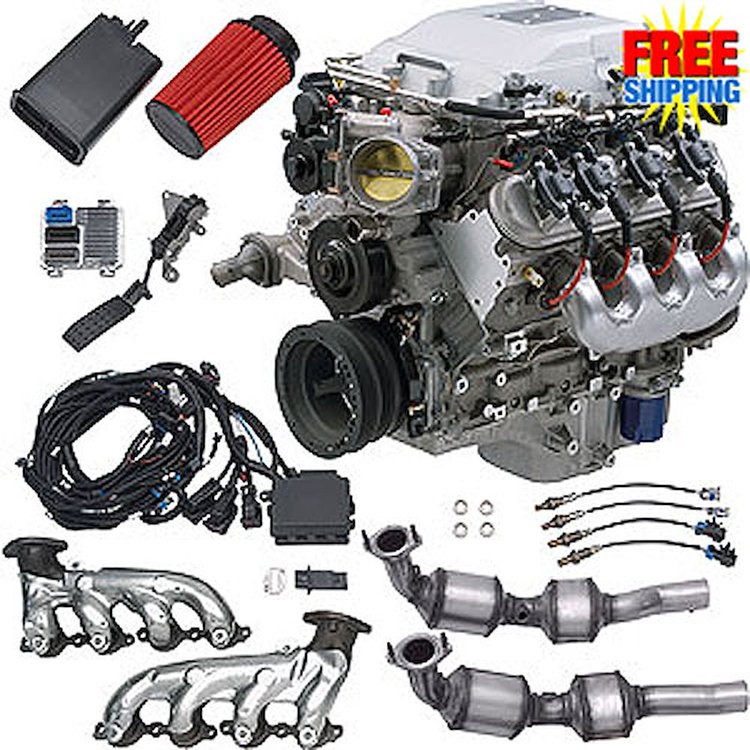

E-ROD LSA Supercharged 6.2L 376ci Engine 556 HP, Manual
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- E-ROD LSA Supercharged 6.2L 376ci Engine
- 556 HP @ 6100 RPM
- 551 ft/lbs TQ @ 3800 RPM
- Manual Transmission Calibration
E-ROD LSA TECH SPECS: - Engine Type: LS-Series Gen IV Small-Block V-8
- Displacement (cu. in.): 376 (6.2L)
- Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92 mm)
- Block: Cast-aluminum with six-bolt, cross-bolted main caps
- Crankshaft: Forged steel with eight-bolt flange
- Connecting Rods: Powdered metal
- Pistons: Hypereutectic aluminum
- Camshaft Type: Hydraulic roller
- Valve Lift: .492' intake / .480' exhaust
- Camshaft Duration (@.050 in.): 198° intake / 216° exhaust
- Cylinder Heads: L92 style port; 'as cast' with 68-cc chambers
- Valve Size: 2.160' intake / 1.590' exhaust
- Compression Ratio: 9.1:1
- Rocker Arms: Investment-cast, roller trunnion
- Rocker Arm Ratio: 1.7:1
- Recommended Fuel: 92 octane
- Maximum Recommended rpm: 6600
- Reluctor Wheel: 58X
- Balanced: Internal
- THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS.
Part TypeEngine
BrandCHEVROLET PERFORMANCE
Package Height36.0
Package Width38.0
Package Length46.0
Weight748.9 PG
Part CategoryPerformance Parts
Carb Eo NumberD-126-33 (pdf)
Vendor Part Number19257460
Package Qty1
Package TypeEA
