Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

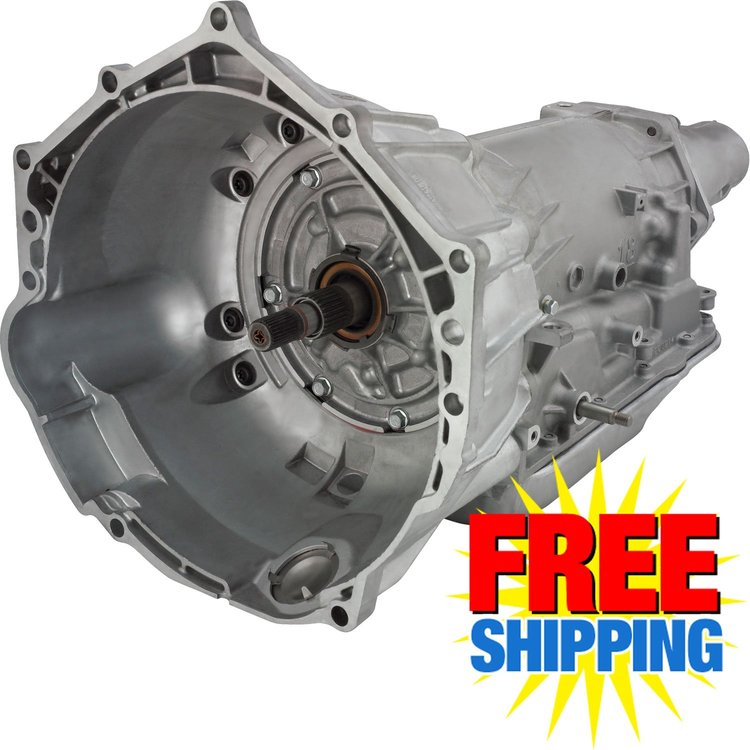

Hydra-Matic 4L65-E Four-Speed Automatic Transmission
- Hydra-Matic 4L65-E Four-Speed Automatic Transmission
- No Converter
Technical Information:
The differences between 4L60-E, 4L65-E, 4L70-E (4L60 Family Transmissions) are primarily by gearset design. Each planetary gearset in the 4L60 has four pinion gears, and the 4L65 and 4L70 have five pinion gear planetaries. The input torque ratings for the different transmissions are; 4L60-E: 380 ft/lbs, 4L65-E: 430 ft/lbs and 4L70-E: 495 ft/lbs. External fit, form and function are identical between the three variants of 4L60-E, 4L65-E, and 4L70-E transmission assemblies.
Part TypeAutomatic Transmission
BrandCHEVROLET PERFORMANCE
Package Height24.0
Package Width24.0
Package Length48.0
Weight190.0 PG
Part CategoryPerformance Parts
Transmission Mfr.GM
Flexplate Shield Built InNo
Transmission Drive Type2WD
Pan TypeStock
First Gear Ratio (Automatic Transmissions)3.06
QuantitySold individually
Transmission Mfr. Code4L65-E
Yoke StyleSlip On
Dipstick IncludedNo
Valve Body StyleAutomatic
Trans-Brake IncludedNo
Fluid Fill LocationPan
Case FinishNatural
Case MaterialAluminum
Transmission Shield Built InNo
Safety RatingNot SFI Approved
LockupNo
Vendor Part Number19260380
Package Qty1
Package TypeEA
No Questions
No Reviews
