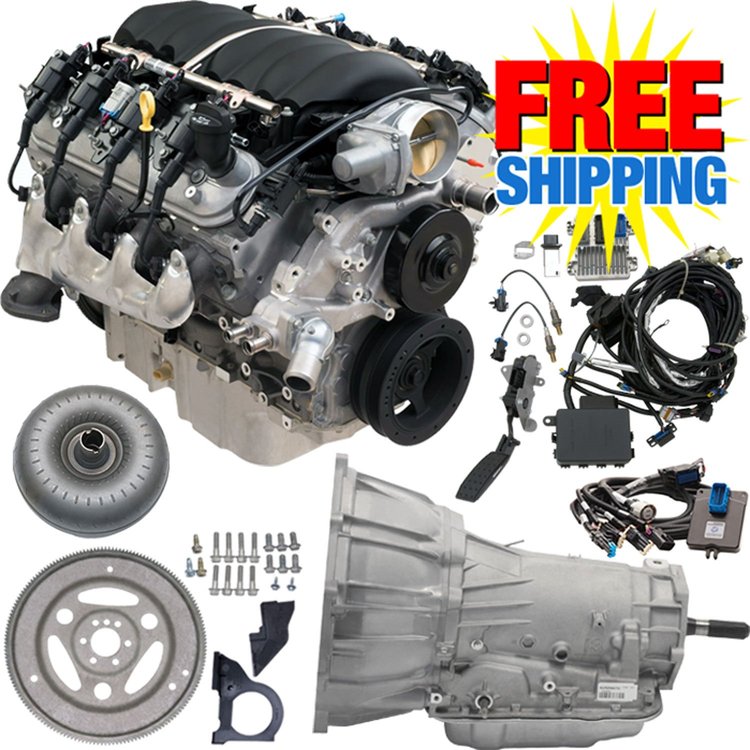

LS3 6.2L 430HP Connect & Cruise Powertrain System 430 HP 4WD
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19301326K2

LS3 6.2L 430HP Connect & Cruise Powertrain System 430 HP 4WD

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    LS3 6.2L 430HP Connect & Cruise Powertrain System
  • 430 HP @ 5900 RPM
  • 425 ft/lbs TQ @ 4600 RPM
  • SuperMatic 4L70-E Transmission 4WD Applications
  • 2400-2800 RPM Stall Torque Converter

    LS3 376ci / 6.2L TECH SPECS:
  • Engine Type: LS-Series Gen IV Small-Block V-8
  • Displacement: 376ci (6.2L)
  • Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
  • Block: Cast aluminum with 6-bolt, cross-bolted main bearing caps
  • Crankshaft: Nodular Iron, 6-bolt
  • Connecting Rods: Powdered-metal
  • Pistons: Hypereutectic aluminum
  • Compression Ratio: 10.7:1
  • Camshaft Type: Billet steel hydraulic roller
  • Valve Lift: .551' intake/ .522' exhaust
  • Camshaft Duration (@.050 in.): 204° intake / 211° exhaust
  • Cylinder Heads: Aluminum L92-style port; "as cast" with 68cc chambers
  • Valve Size: 2.165' intake / 1.590' exhaust
  • Rocker Arms: Investment-cast, roller trunnion
  • Rocker Arm Ratio: 1.7:1
  • Recommended Fuel: Premium pump
  • Maximum Recommended RPM: 6600
  • Reluctor Wheel: 58X
  • Balanced: Internal

    • INSTALLATION NOTES:
  • Intended for pre-1976 street vehicles or any off-road vehicle
  • Not intended for marine applications
  • Front-end accessory drive kits are available in two configurations
  • Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MOST EARLY VEHICLE, LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)
Part TypeEngine
BrandCHEVROLET PERFORMANCE
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedYes
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberN/A
Water Pump IncludedYes
EmissionNot Legal
Flexplate IncludedYes
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeChevy LS Series
Flywheel IncludedNo
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower430
Distributor IncludedYes
Camshaft StyleHydraulic roller tappet
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedYes
Harmonic Balancer IncludedYes
QuantitySold individually
Fuel DeliveryFuel Injection
Rpm Power Range800-6400
Engine BalanceInternal
Compression Ratio10.7:1
Oil Pan IncludedYes
Timing Cover IncludedYes
Spark Plugs IncludedYes
Package Qty1
Package TypeEA
