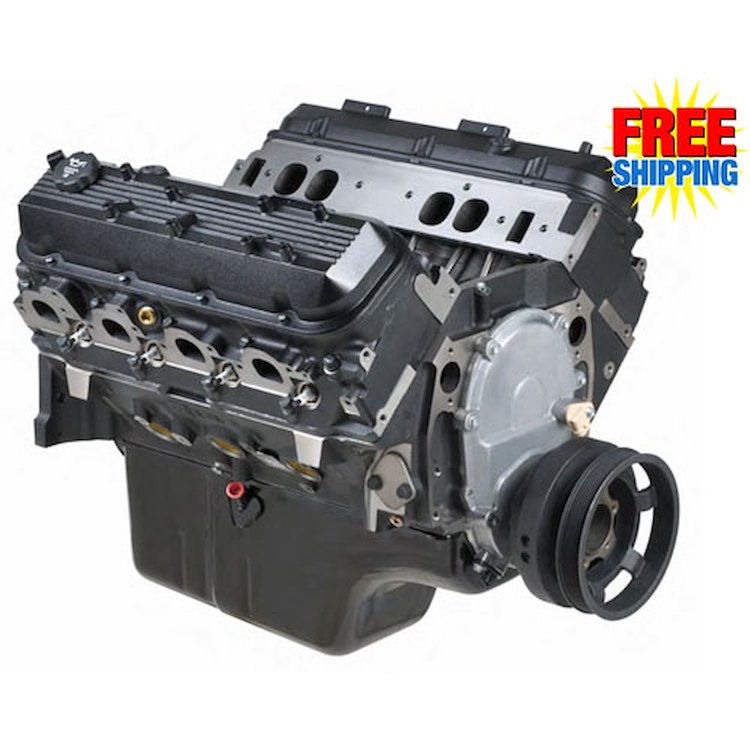

Vortec 8.0L/488ci Truck Crate Engine
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19328586

Vortec 8.0L/488ci Truck Crate Engine

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    Vortec 8.0L/488ci Crate Engine
    Free Shipping!

    Truck Power with Gas, CNG or LPG fuels

    When it comes to grunt work like pulling your car hauler or offshore racing boat, Chevrolet Performance's heavy-duty 8.0L Big-Block does the job like no other gas engine. It's designed to accommodate gasoline, CNG or LPG fuels, and because it's a Big-Block, it delivers strong, low-rpm torque.

    The 8.0L's foundation starts with a forged steel crankshaft and forged connecting rods for great strength. A long, 4.250-inch stroke helps maximize torque, 10.2" tall deck height features full-length water jackets, thicker main bearing webs and four-bolt main caps for reliability when needed most. It also features a crank-triggered ignition system, with 4x camshaft and 58x crankshaft reluctor wheels.

    Assembly comes with heads and a balancer installed. An induction system, ignition, starter, water pump and other accessories are required to finish the engine. Requires an intake manifold designed for a tall-deck block or conventional big-block intake manifold with spacers.

    Note: The engine can support fuel injection and also has a provision for a mechanical fuel pump (the production 8.0L camshaft does not have a fuel pump lobe). Distributor with melonized steel gear MUST be used with long-blocks and Partial engines with steel camshafts, or engine damage will occur. Spark plugs not included.

    Features:
  • Designed for gasoline or CNG/LPG on-highway applications.
  • Tall-deck block design (10.2" deck height).
  • Full-length water jackets (non-Siamese cylinders).
  • Thicker main bearing webs with four-bolt main caps.
  • Forged steel crankshaft and connecting rods
  • Double-row roller timing chain.
  • Anodized pistons with full floating wrist pins offer CNG/LPG capability.
  • Hardened valve seats (intake and exhaust) for CNG/LPG durability.
  • Stainless steel intake and exhaust valves for CNG/LPG durability.
  • Adjustable valve train.
  • Fast Burn cylinder heads for fuel efficiency and power.
  • 58x Crankshaft positioning sensor capability
  • 4x Camshaft positioning sensor capability.
  • Flat-response knock sensor capability.
  • Coil-near-plug configuration.

    Specifications:
  • Displacement: 8.0L
  • Displacement: 488ci
  • Bore x Stroke: 4.270" x 4.250"
  • Block: Tall deck (10.2")
  • Fuel Requirements: LPG/CNG
  • Crankshaft: Forged steel
  • Connecting Rods: Forged steel
  • Firing Order: 1-8-7-2-6-5-4-3
  • Connecting Rod Ratio: 1.58:1
  • Pistons: Hypereutectic w/anodized top ring land
  • Camshaft Type: Hydraulic roller
  • Cylinder Heads: Fast Burn iron
  • Damper: Cast iron
  • Valve Train: Fully adjustable
  • Compression Ratio: 9.9:1 nominal
  • Crankcase Capacity: 8 Qts
  • Maximum Recommended RPM: 4,500
  • Balanced: Internal

    GM Warranty

    Chevy Crate Engine Break-In Guide

Part TypeEngine
Product LineChevrolet Performance Vortec 8.0L Crate Engine
BrandCHEVROLET PERFORMANCE
Package Height32.0
Package Width37.5
Package Length39.7
Weight673.0 PG
Part CategoryPerformance Parts
Vendor Part Number19328586
Package Qty1
Package TypeEA
