Chevrolet Performance continues to lead the industry with its unprecedented Connect & Cruise crate powertrain systems - factory-engineered engine and transmission combinations. Chevy Performance engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower from them with total confidence. The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation and operation without the need for third-party tuning. Each kit delivers a brand-new, fully assembled crate engine, an electronically controlled overdrive transmission, electronic control modules for both, and the engine control hardware to get it all running in your project vehicle. The convenience of a crate engine, the assurance of factory validated performance, and the value of an inclusive package - that's what you get with Chevrolet Performance's Connect & Cruise crate powertrain systems. Detailed instructions outline all the necessary steps. The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems - and they covered them with a 24-month/50,000-mile limited warranty.

LS7 7.0L, 505HP / 470TQ Engine
Within its classic 427-cu-in displacement, engineers extracted Big-Block grunt from its high-revving Small-Block package. It features a unique, big-bore cylinder block that is anchored with a forged crankshaft, featherweight titanium connecting rods, and friction-coated pistons. But it's the airflow capability of the cavernous, CNC-ported heads that enables its tremendous power. Large-volume, straight-passage intake runners channel air directly through 2.20-inch titanium intake valves.
Chevrolet Performance's LS7 7.0L crate engine package includes a Corvette production-style engine with a dry-sump oil pan. You'll need to supply the external oil supply and oil lines to the engine, but the rest of the assembly is fully dressed, including the manifold assembly with injectors and electronically controlled throttle body, and log-style exhaust manifolds.

LS7 427ci / 7.0L TECH SPECS:

• Engine Type: LS-Series Gen IV Small-Block V-8
• Displacement: 427 ci (7.0L)
• Bore x Stroke: 4.125 in. x 4.000 in. (104.800 x 101.600 mm)
• Block: Cast-aluminum with six-bolt steel main bearing caps
• Crankshaft: Forged steel
• Connecting Rods: Forged titanium
• Pistons: Hypereutectic aluminum
• Camshaft Type: Hydraulic roller
• Camshaft Lift: .593 in. intake / .588 in. exhaust
• Camshaft Duration (@.050 in.): 211° intake / 230° exhaust
• Cylinder Heads: CNC ported LS7-style ports; 70-cc CNC combustion chambers
• Valve Size: 2.200 in. titanium intake / 1.610 in. sodium-filled exhaust
• Compression Ratio: 11.0:1
• Rocker Arms: Investment-cast, roller trunnion
• Rocker Arm Ratio: 1.8:1 (offset, intake only)
• Recommended Fuel: 91 octane (Minimum)
• Maximum Recommended rpm: 7000
• Reluctor Wheel: 58X
• Balanced: Internal

INSTALLATION NOTES:

• Assembly does not include accessory drive kit
• Comes assembled with 14-inch 168-tooth flywheel
• LS7 is the same size and mounts the same as other LS-Series engines
• Use oil hose adapters (P/N 25534412) to adapt to AN-12 fittings
• Intended for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications

Engine Control Modules and Harnesses
A precisely calibrated engine control module is essential to making your fuel-injected LS engine perform in your older vehicle - and Chevrolet Performance is your source for controllers that are designed for easy, "plug-and-play" installation and, in most applications, no need for third-party tuning adjustments.
Unlike production controllers that may or may not come with a used engine, these controllers are calibrated for installation in older vehicles. That means many of the features required for late-model production vehicles are "turned off," because they're not required in older cars and trucks. That means features that may trigger a diagnostic trouble code and possibly affect performance - requiring additional tuning - are not enabled.
These inclusive kits deliver all the components required to plug into the engine and get it running - from the controller itself and the accompanying wire harness to the mass airflow sensor, oxygen sensors, and even a throttle pedal assembly for engines equipped with an electronic throttle body. The kits also include detailed instructions to help you do it right the first time, even if you have no experience.

Most Engine Control Modules Kits Include:

• Two oxygen sensors
• Two oxygen sensor mounting bosses (for installation in the exhaust system)
• A mass airflow meter
• A mass airflow meter mounting boss (for installation in the air intake system)
• A throttle pedal assembly (for use with the electronically operated throttle body
• A specific oil pressure sensor that is compatible with the harness (when needed)
• A complete wiring harness with fuse box and necessary cam sensor and MAP sensor jumpers
• The programmed controller
• Instructions

SuperMatic 4L70-E Four-Speed Automatic Transmission
Capable of handling an impressive 495 ft/lbs of torque, the 4L70-E Four-Speed Transmission for your two-wheel drive (p/n 809-19299055) project car is a compact, all-aluminum transmission that accommodates your street performance needs.
Based on the renowned Hydra-Matic 4L60-E and 4L65-E Four-Speed Overdrive Transmissions, the 4L70-E delivers greater torque-carrying capacity and increased durability. It features five-pinion gearsets, heat-treated stator shaft splines, and induction-hardened turbine shaft, a seven-plate clutch, and specific valve-body calibration. GM-engineered, -tested, and -validated to deliver smooth shifts, it more than meets the demands of your high-performance engine.

Features:

• Based on the 4L60-E/4L65-E
• Increased horsepower and torque capacity
• Features five-pinion gearsets, heat-treated stator shaft splines, induction-hardened turbine shaft, seven-plate clutch and specific valve-body calibration
• Gear ratios: 1st: 3.06, 2nd: 1.62, 3rd: 1.00, 4th: 0.70
• Handles up to 495 lbs/ft. torque

SuperMatic 4L70-E Installation Kit
Get your new 4L70-E bolted to your new engine with this SuperMatic 4L70-E installation kit. Kit includes all the correct components that Chevrolet Performance offers to easily mate your new engine and trans.

Installation Kit Includes:

• SuperMatic Torque Converter; Single Bolt Pattern: 11.062 in.
• SuperMatic Connect-N-Cruise Pre-Programmed Controller
• Flexplate
• Flexplate Covers
• Fasteners
• Instructions

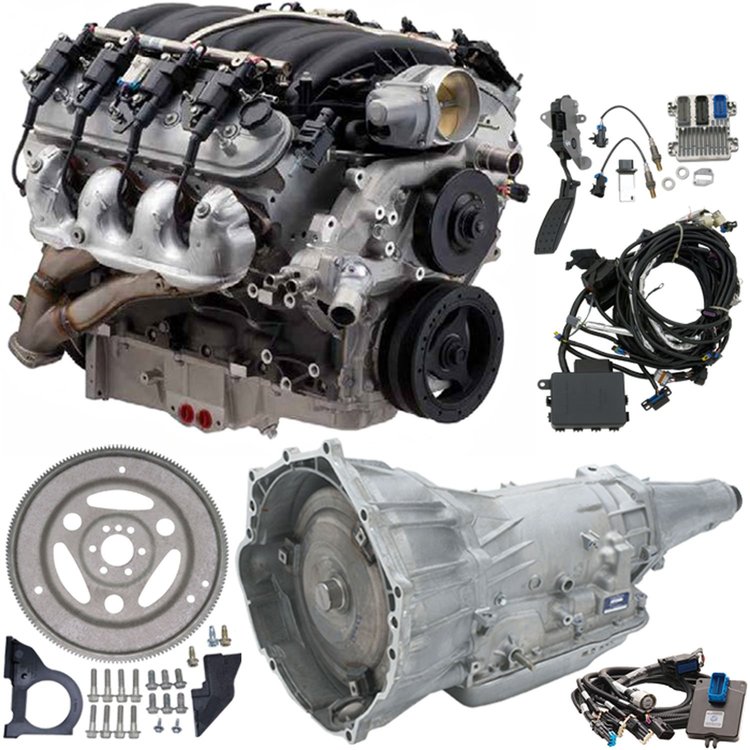

Each Crate Powertrain System Includes:

• Fully assembled crate engine
• Transmission & Install Kit
• SuperMatic transmission control module
• Calibrated engine control module
• Oxygen sensors and mounting bosses (for installation in the exhaust system)
• Mass airflow meter and mounting boss (for installation in the air intake system)
• Throttle pedal assembly (for use with the electronically operated throttle body)
• Assembled wiring harness with fuse box and necessary cam sensor, oil pressure sensor, MAP sensor jumpers
• Instructions

GM Warranty
