![GM Gen V LT-Series 6.2L Bare Block [LT1, LT4, LT5 Direct Replacement]](https://www.jegs.com/images/mini_750/800/809/809-19329617.jpg)
Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-19329617

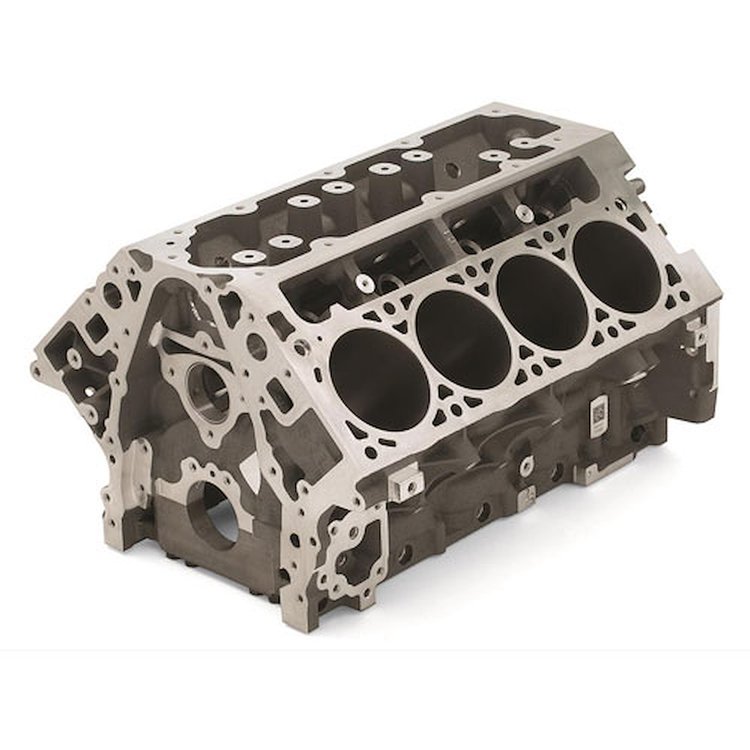

GM Gen V LT-Series 6.2L Bare Block [LT1, LT4, LT5 Direct Replacement]
$2,22699
Truck Freight
Ships on 09/14/2026
Lowest Price GuaranteeAluminum Block
GM Gen V LT-Series 6.2L Bare BlockDirect replacement LT1, LT4, & LT5 Engines 4.065 in. finished bore (103.250 mm) Nodular Iron 6-Bolt Main Bearing Caps Cast-Aluminum Block w/ Iron Sleeves
Features:
- Deep-Skirt Casting (the block side extends below the crankshaft centerline)
- 6-Bolt Cross-bolted Main Caps
- Strong and Lightweight Aluminum Alloy Casting (most production blocks)
- 9.240" Standard Deck Height
- 2.560" Standard LS Crankshaft Journal Diameter
- 1-Piece Rear Main Seal
- Optional Wet or Dry Sump Oiling
- Production Aluminum block with iron sleeves
- Production Oiling System
- Use only with LT1 - style cylinder heads
- 4.065 in. finished bore (103.25mm)
- Provisions for Active Fuel Management
- Provision for Direct Fuel Injection
Part TypeEngine Block
BrandCHEVROLET PERFORMANCE
Package Height22.8
Package Width25.5
Package Length38.0
Weight153.0 PG
Part CategoryPerformance Parts
Maximum Bore Diameter4.07 in (103.378 mm)
Engine Block Weight (Lbs.)110
Deck Height9.24 in (234.696 mm)
ToolStroker Combinations
Package Qty1
Package TypeEA
