Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-19329901

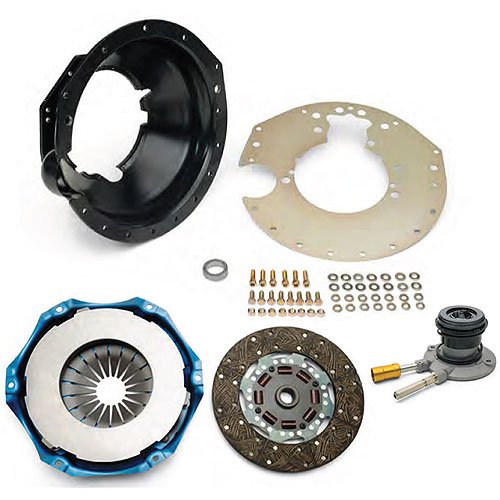

T56 Super Magnum Installation Kit Big Block Chevy 1-Piece Rear Main Seal Engines
$2,56643
Ships on 09/17/2026
Lowest Price GuaranteeTransmission Installation Kit
- T56 Super Magnum Installation Kit
- Big Block Chevy 1-Piece Rear Main Seal Engines
Includes: - Super Magnum Bell Housing Kit (p/n 809-19329025)
- Hydraulic Throwout Bearing (p/n 809-24264182)
- Clutch Actuator to Trans Bolts (p/n 809-11516424)
- Bell Housing to Trans Bolts (p/n 809-12523235)
- 14' Diameter, 168-Tooth Flywheel (p/n 809-14096987)
- Flywheel to Crankshaft Bolts (p/n 809-12337973)
- Clutch Disc & Pressure Plate Set (p/n 809-19329633)
- Crankshaft Pilot Bearing (p/n 809-14061685)
- Instruction Sheet
- Does not include transmission or clutch master cylinder.
This installation kit was assembled to make your T56 swap as painless as possible. The engineers at Chevrolet Performance packaged the major components needed to provide an easier installation of a T56 6-speed transmission behind traditional Small-Block and Big-Block Chevy engines.
Show More
Features:
- Super Magnum Bell Housing
- Hydraulic Throw-out Bearing
- 14'' Diameter, 168-Tooth Flywheel
- Clutch Disc & Pressure Plate Set
- Crankshaft Pilot Bearing
- Hardware and Instruction Sheet
- Transmission not included in this kit
Part TypeManual Transmission Shifter Installation Kit
Product LineChevrolet Performance Tremec T56 to Small/Big Block Chevy Installation Kit
BrandCHEVROLET PERFORMANCE
Package Height12.5
Package Width18.0
Package Length19.0
Weight95.0 PG
Part CategoryPerformance Parts
Pressure Plate TypeDiaphragm
Clutch Disc Diameter11
Clutch Disc Spline Quantity26
Disc TypeSpring Hub
Disc MaterialSintered Iron
Vendor Part Number19329901
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
