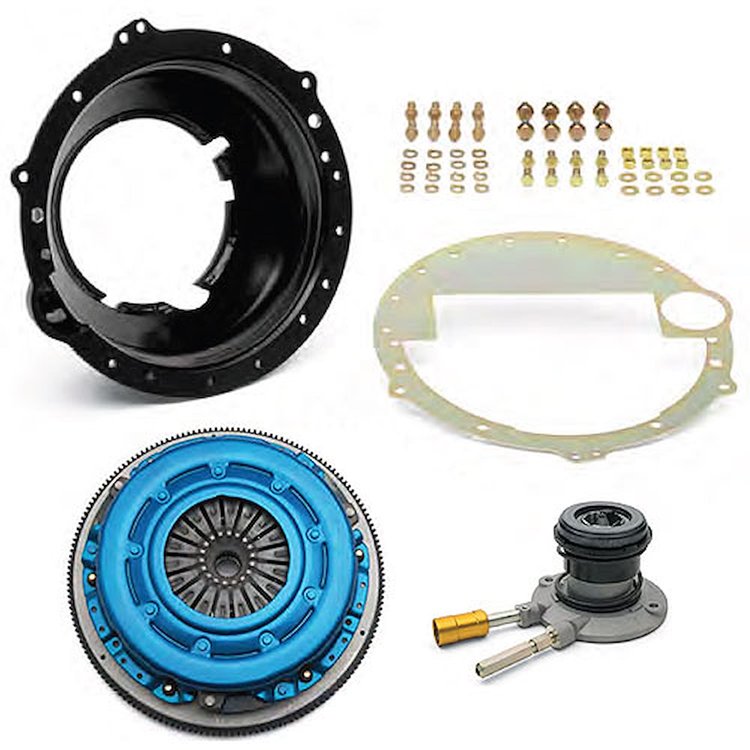

Vehicle Info NeededT56 Super Magnum Installation Kit LS/LT Engine with 8-Bolt Crank Flange
Ships on 11/16/2026
Lowest Price Guarantee- T56 Super Magnum Installation Kit
- LS/LT Engine with 8-Bolt Crank Flange
T-56 Magnum Transmission to 8 Bolt LS/LT Engine Installation Kit
Includes: - Super Magnum Bell Housing Kit (p/n 809-19329620)
- Hydraulic Throw-out Bearing (p/n 809-24264182)
- Clutch Actuator to Trans Bolts (p/n 809-11516424)
- Bell Housing to Trans Bolts (p/n 809-12523235)
- Flywheel to Crankshaft Bolts (p/n 809-11569956)
- Clutch Disc & Pressure Plate Set, 14' Diameter, 168-Tooth Flywheel (p/n 809-19329635)
- Crankshaft Pilot Bearing (p/n 809-14061685)
- Instruction Sheet
- Does not include transmission or clutch master cylinder.
A Transmission for Those Who Accept Only the Best
Able to withstand 700 ft/lbs torque while providing unbelievably crisp shifts, the Super Magnum T56 Transmission is the kingpin of Tremec's high-performance lineup. No other manual transmission offers as much combined strength, ease of use, and versatility as the T56 Magnum. This high-torque capacity TREMEC six-speed manual is specially designed for custom, retro-fit installations with Chevrolet Performance crate engines. The exterior case similar to fourth-generation F-body transmission with the stronger, high-capacity gear sets, input shaft and output shaft used in the TREMEC TR6060. It also features a 40-tooth reluctor ring that's necessary for use with electronic vehicle speed sensors used with Chevrolet Performance controllers.
Show More
Features:
- 700 lb.-ft. Maximum Torque Capacity
- 26-Spline Input Shaft
- 31-Spline Output Shaft
- Gear Ratios: 2.66 (1), 1.78 (2), 1.30 (3), 1.00 (4), 0.80 (5), 0.63 (6)
- Slip-Yoke Design
- Two-Position Shifter Plate Included, With Third Position Built Into The Transmission
Get your new T56 Magnum on the road with Chevrolet Performance's T56 Super Magnum Installation Kits: bellhousing, flywheel, clutch, clutch release bearing, pressure plate, dust covers, and hardware.
