Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-19331083

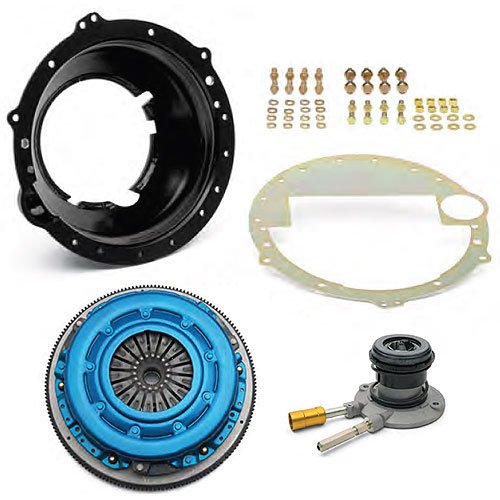

T56 Super Magnum Installation Kit LS9 Engine with 9-Bolt Crank Flange
$4,08463
Ships on 09/15/2026
Lowest Price GuaranteeTransmission Installation Kit
- T56 Super Magnum Installation Kit
- LS9 Engine with 9-Bolt Crank Flange
Rated for 800 ft/lbs of torque. Includes SFI approved aluminum flywheel. Will not fit LS/LT engines with 6-bolt or 8-bolt flange.
Includes: - Super Magnum Bell Housing Kit (p/n 809-19329620)
- Hydraulic Throw-out Bearing (p/n 809-24264182)
- Clutch Actuator to Trans Bolts (p/n 809-11516424)
- Bell Housing to Trans Bolts (p/n 809-12523235)
- Flywheel to Crankshaft Bolts (p/n 809-11569956)
- Clutch Disc & Pressure Plate Set, 14' Diameter, 168-Tooth Flywheel (p/n 809-19331082)
- Crankshaft Pilot Bearing (p/n 809-14061685)
- Instruction Sheet
- Does not include transmission or clutch master cylinder.
Part TypeManual Transmission Shifter Installation Kit
BrandCHEVROLET PERFORMANCE
Package Height9.0
Package Width20.5
Package Length20.5
Weight77.0 PG
Part CategoryPerformance Parts
Mount Hole Diameter (Mm)12.294mm
Race OnlyNo
Bolt Hole Quantity To Transmission8
Bolt Hole Quantity To Engine9
Sema Foundation Inc RatingYes
MaterialSteel
Grade TypePerformance
Mount Hole Diameter (In)0.484in
Vendor Part Number19331083
Package Qty1
Package TypeEA
