This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

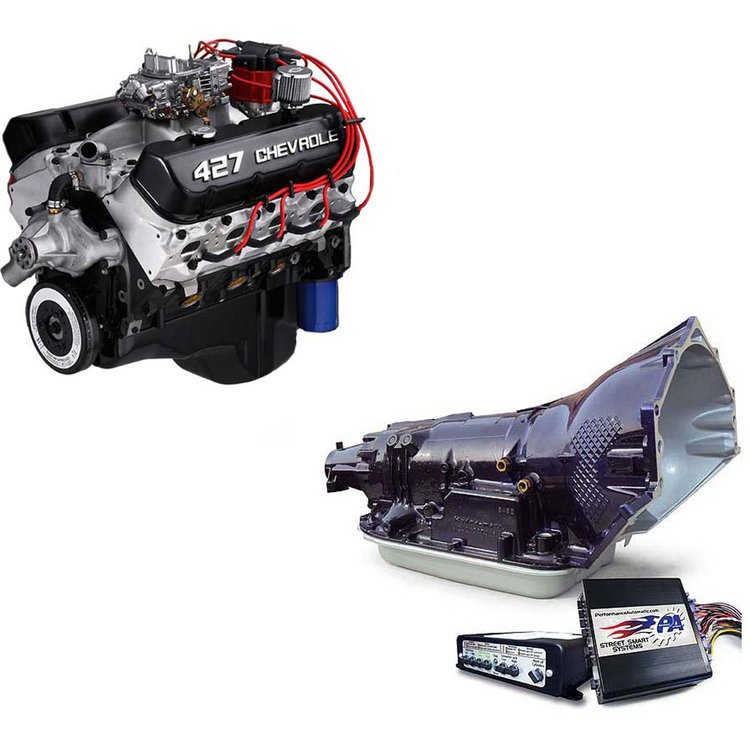

- Engine And Trans Kit
- ZZ427/480 427ci Engine
- Performance Automatic 4L80E Transmission
Part Numbers of Kit Contents - 427Ci Engine 809-19166393
- 4L80E Transmission 732-PAGMZZ427-80
Includes:
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
The Classic L88 427 Big-Block
Updated for the 21st Century!
Between 1967 and 1969, the legendary L88 was the ultimate expression of Chevy's Big-Block power, combining a rigid iron cylinder block with lightweight aluminum cylinder heads and a single four-barrel carburetor. That raspy rat engine was rated at 480 horsepower, although the figure was generally thought to be on the conservative side. It powered some of the most storied cars in high-performance history.
Show More
Chevrolet Performance has recreated that classic Big-Block combination in the Z427/480 - including the 480 horsepower rating (and it just might be a little on the conservative side, too). Like the original, it features a forged steel crankshaft and high-flow, oval-port aluminum cylinder heads. They upgraded the camshaft from the original's mechanical flat-tappet design to a smoother hydraulic roller, which delivers great drivability characteristics and a broader rev range. A 10.1:1 compression ratio means it will perform great on pump gas, too. The engine's top half is the same as the Limited Edition Anniversary 427; the intake is a matching high-flow oval port aluminum piece. With 490 ft/lbs torque and a conservative 480 HP rating, this is still one of the best crate engines for nearly any big block application!
Whether you're building a '69 COPO Camaro resto-mod tribute, a modified mid-year Corvette, or a street-tire class winner, the ZZ427/480 is the heritage-inspired crate engine that delivers the performance that built the Big-Block's legendary reputation.
ZZ427/480 TECH SPECS:
- Engine Type: Chevy Big-Block V-8
- Displacement: 427ci
- Bore x Stroke: 4.250'' x 3.750''
- Block: Cast-iron with four-bolt main caps
- Crankshaft: Forged steel
- Connecting Rods: Forged steel
- Pistons: Forged aluminum
- Camshaft Type: Hydraulic roller
- Camshaft Lift: .527'' intake / .544'' exhaust
- Camshaft Duration (@.050 in.): 224° intake / 234° exhaust
- Cylinder Heads: Aluminum oval port, 110cc combustion chambers
- Valve Size: 2.190'' intake / 1.880'' exhaust
- Compression Ratio: 10.1:1
- Rocker Arms: Aluminum roller style
- Rocker Arm Ratio: 1.7:1
- Distributor: HEI type
- Carburetor: 770-cfm
- Water Pump: Aluminum, short-style
- Spark Plugs and Wires: Included
- Flexplate: 14'' diameter, internally balanced
- Recommended Fuel: Premium pump (92 octane)
- Ignition Timing: Base 36° Total @ 4000 rpm
- Maximum Recommended RPM: 6400
- Balanced: Internal
