Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

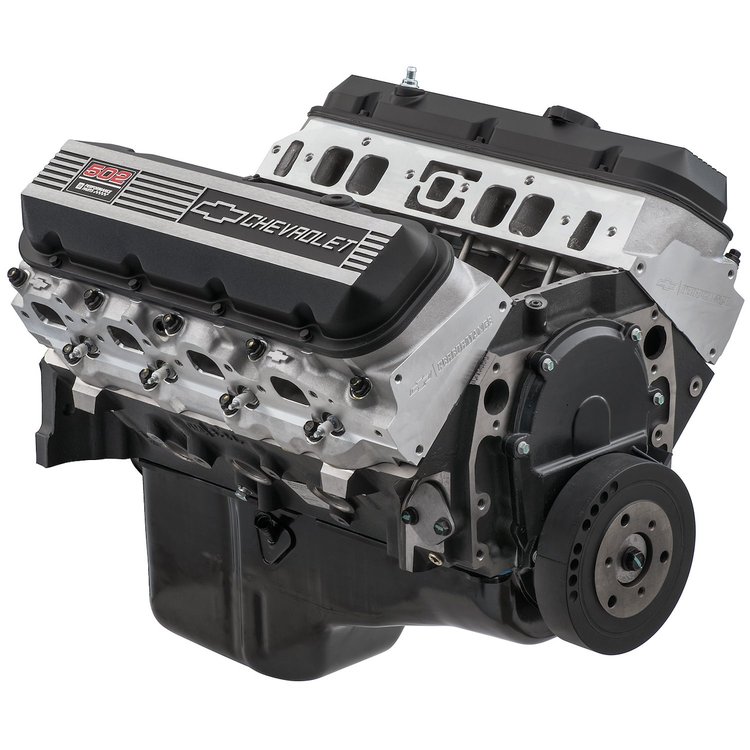

ZZ502 Base Engine
- *REMANUFACTURED - GM Warranty Does NOT Apply
- 508 HP @ 5200 RPM
- 580 ft/lbs Torque @ 3600 RPM
- Fully Assembled
INSTALLATION NOTES: - Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads for clearance
- The 502 engines now have a mechanical fuel pump boss!
- Comes with an externally balanced 14' automatic transmission flexplate. Use flywheel P/N 809-14096987 and 11" clutch assembly for manual transmission applications
- Designed for pre-1976 street vehicles or any off-road vehicle
- Not intended for marine applications
- For long blocks and partial engines with steel camshafts, a distributor with a melonized steel gear must be used or engine damage will occur. Distributor #809-93440806 is recommended.
ZZ502 Base Engine
Part TypeEngine
BrandCHEVROLET PERFORMANCE
Package Height28.5
Package Width31.0
Package Length36.0
Weight592.0 PG
Part CategoryPerformance Parts
Vendor Part Number19331576-R
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
