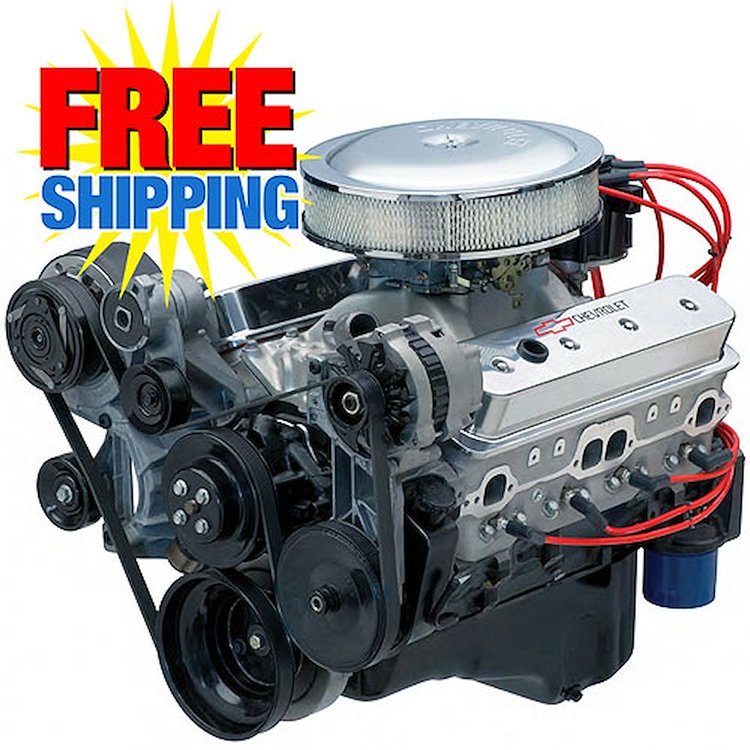

*REMANUFACTURED - SP350 Turn-Key 350ci Engine 385 HP @ 5600 RPM
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- *REMANUFACTURED - GM Warranty Does NOT Apply
- 385 HP @ 5600 RPM
- 405 ft/lbs Torque @ 3600 RPM
INSTALLATION NOTES: - Comes with 12.750' externally balanced 153-tooth automatic transmission flexplate. Change to externally balanced flywheel for manual transmission applications.
- Requires fuel line from fuel pump to carburetor
- Fuel pump pressure is pre-set; fuel pressure regulator not required
- Designed for pre-1976 street vehicles or off-road vehicles
- Some assembly and minor engine tuning required
- Not intended for marine application
- Distributor with melonized steel gear MUST be used with steel camshafts, or engine damage will occur.
SP350 Turn-Key 350ci Engine
A Legendary Foundation with Turn-Key Ease!
Chevrolet Performance's SP350 Turn-Key uses new-casting Fast Burn cylinder heads equipped with LS-style beehive valve springs for greater high-rpm performance. The new, lightweight aluminum cylinder head casting is based on the proven Fast Burn design. They feature 62cc chamber, 210cc intake runners, 2.00'' hollow stem intake/1.55'' sodium-filled exhaust valves, Blue beehive valve springs, steel retainers, machined steel spring seats and split key locks, D-shaped exhaust ports, dual intake bolt pattern, standard perimeter and center-bolt valve cover bolt patterns, Angled Spark Plugs (5/8" Hex, 3/4" Reach, Tapered Plugs). The beehive-style valve springs enable greater high-rpm performance and durability.
Show More
They allow the SP350 to rev higher to make the most of every cubic inch of air drawn through it. The SP350 is built with a brand-new block with four-bolt mains, along with a forged-steel crankshaft, an aggressive hydraulic roller camshaft, and durable, high-silicon pistons. Unique valve covers distinguish this new crate engine at a glance, too-along with Chevy bow tie insignias in the ends of the cylinder heads that let everyone know you have the latest Chevrolet Performance hardware under the hood.
The Turn Key engine package includes the distributor, carburetor, and balancer installed. The starter, fuel pump, air conditioning pump, alternator, front-end accessory drive kit, and more are also included.
SP350 TURN-KEY TECH SPECS:
- Engine Type: Chevy Small-Block V-8
- Displacement: 350ci
- Bore x Stroke: 4.000'' x 3.480''
- Block: Cast-iron with four-bolt main caps
- Crankshaft: Forged steel, 1-piece rear main seal
- Connecting Rods: Powdered steel
- Pistons: Hypereutectic aluminum
- Camshaft Type: Hydraulic roller
- Camshaft Lift: .474'' intake / .510'' exhaust
- Camshaft Duration (@.050 in.): 208° intake / 221° exhaust
- Cylinder Heads: 'Fast Burn' aluminum, 62cc combustion chambers
- Valve Size: 2.000'' intake / 1.550'' exhaust
- Compression Ratio: 9.6:1
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.5:1
- Distributor: HEI type
- Carburetor: 770 cfm
- Water Pump: Cast-iron, long-style
- Spark Plugs and Wires: Included
- Starter: Included
- Flexplate: 12.75'' diameter, 153-tooth
- Recommended Fuel: Premium pump
- Ignition Timing: 36° Total @ 4000 rpm
- Maximum Recommended RPM: 5800
- Balanced: External
