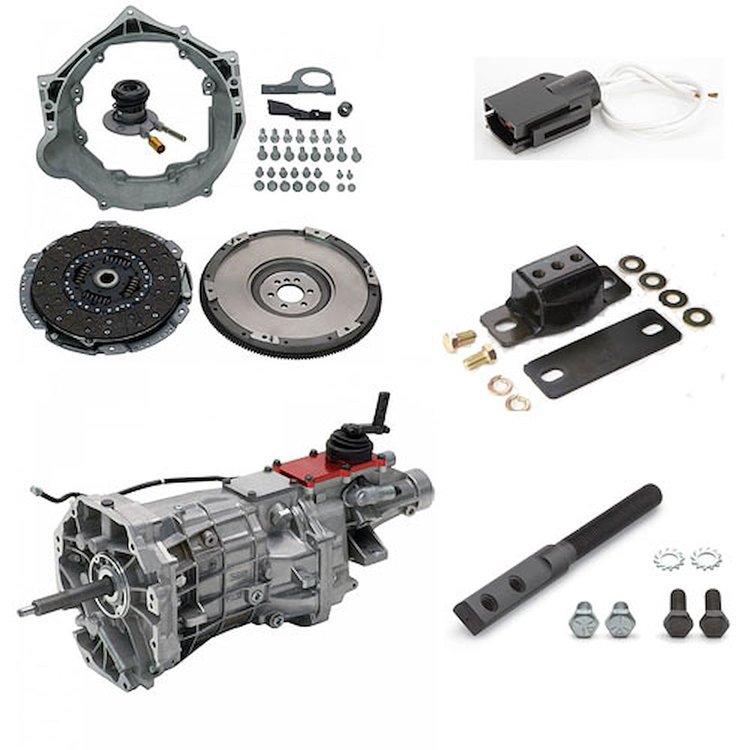

T56 Super Magnum Transmission Kit 2.66 1st Gear Includes:
- T56 Super Magnum Transmission Kit
- 2.66 1st Gear
Includes: - T56 Transmission
- Installation Kit
- Shifter Handle
- Transmission Mount
- Speed Sensor Pigtail
Kit Includes: - Chevrolet Performance T56 Super Magnum Six-Speed Manual Transmission -809-19352208
- Chevrolet Performance T56 Bellhousing and Clutch Kit -809-19301625
- Chevrolet Performance Shifter Handle -809-19301622
- JEGS Urethane Transmission Mount -555-61820
- JEGS Speed Sensor Pigtail -555-60112
The Chevrolet Performance T56 Super Magnum Six-Speed Manual Transmission is a high-torque capacity TREMEC six-speed manual. Specially designed for custom, retro-fit installations with Chevrolet Performance crate engines. The exterior case similar to fourth-generation F-body transmission with the stronger, high-capacity gear sets, input shaft and output shaft used in the TREMEC TR6060. It also features a 40-tooth reluctor ring that's necessary for use with electronic vehicle speed sensors used with Chevrolet Performance controllers.
Show More
Features:
- 700 lb.-ft. Maximum Torque Capacity
- 26-Spline Input Shaft
- 31-Spline Output Shaft
- Gear Ratios: 2.66 (1), 1.78 (2), 1.30 (3), 1.00 (4), 0.80 (5), 0.63 (6)
- Slip-Yoke Design
- Two-Position Shifter Plate Included, With the Third Position Built Into The Transmission
