ZZ6 Base 350ci Engine Kit, 405 HP @ 5600 RPM

Name: ZZ6 Base 350ci Engine Kit, 405 HP @ 5600 RPM
Brand: CHEVROLET PERFORMANCE
SKU: 809-19355668K
Price: 7693.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

ZZ6 350ci Engine Kits

ZZ6 Base 350ci Engine Kit

405 HP @ 5600 RPM

406 ft/lbs Torque @ 4600 RPM

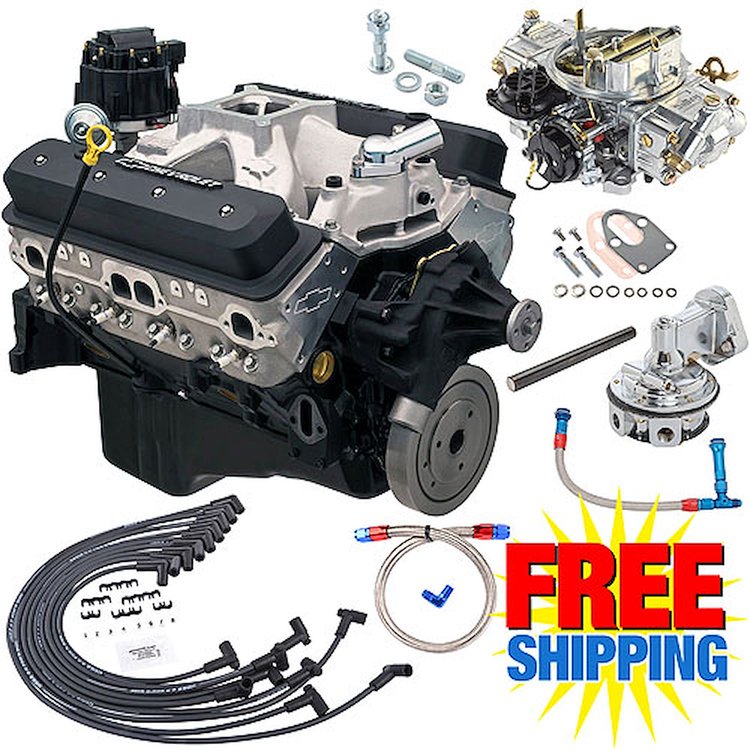

Includes:

ZZ6 Engine

770cfm Carb & Carb Studs

80gph Fuel Pump, Mount Plate, Pump Pushrod

Fuel Lines

8.0mm Spark Plug Wires

Kit Includes:

Chevrolet Performance ZZ6 Base Engine - 809-19355668
Holley 770 cfm Street Avenger Carb w/Electric Choke - 510-0-80770
JEGS Carburetor Stud Kit, 1-1/2' Length - 555-15840
JEGS Chrome Fuel Pump Mounting Plate - 555-50580
JEGS Lightweight Fuel Pump Pushrod - 555-15930
JEGS 8.0mm Pow'r Wires - 555-402011
JEGS Chrome Mechanical Fuel Pump - 555-15950
JEGS Fuel Line and Fitting Kit, Carburetor to Mechanical Fuel Pump - 555-100816
JEGS Dual Feed Carburetor Fuel Line Kit - 555-100821

INSTALLATION NOTES:
Use the Holley 770-cfm four-barrel carburetor to achieve the listed horsepower and torque
Requires additional components to complete assembly
Comes with 12.750' externally balanced 153-tooth automatic transmission flexplate. Change to externally balanced flywheel for manual transmission applications.
Designed for pre-1976 street vehicles or any off-road vehicle.
Some assembly and minor engine tuning required
Not intended for marine application

The Next Chapter in the ZZ Small-Block Legacy!

Chevrolet Performance's ZZ6 delivers more power than any 350 Small-Block ever installed in a production vehicle. Rated at 405 horsepower and 406 lb.-ft. of torque, it derives its range-topping performance from unique, lightweight aluminum cylinder heads that enable optimal airflow at high rpm.

The cylinder head casting is based on the proven Fast Burn design, with large intake runners and 2.00/1.55-inch valves. Beehive-style valve springs deliver greater high-rpm performance and durability. Their egg-shaped profiles have less reciprocating mass in motion, require less spring pressure for greater valve control and handle valvetrain stresses more efficiently. They allow the ZZ6 to rev higher to make the most of every cubic inch of air drawn through it.

The ZZ6 also uses an aggressive hydraulic roller camshaft that supports the engine's high-rpm airflow capability while maintaining excellent low-speed drivability. This 'Base' crate engine kit includes the intake manifold, distributor, water pump, harmonic damper and flexplate - and the distinctive, racing-inspired valve covers that distinguish this crate engine as the latest in the ZZ legacy!

ZZ6 BASE TECH SPECS:

Engine Type: Chevy Small-Block V-8
Displacement: 350ci
Bore x Stroke: 4.000'' x 3.480''
Block: Cast-iron with four-bolt main caps
Crankshaft: Forged steel, 1-piece rear main seal
Connecting Rods: Forged powder metal
Pistons: Hypereutectic aluminum
Camshaft Type: Hydraulic roller (steel)
Camshaft Lift: .474'' intake / .510'' exhaust
Camshaft Duration (@.050 in.): 208° intake / 221° exhaust
Cylinder Heads: 'Fast Burn' aluminum, 62cc combustion chambers
Valve Size: 2.000'' intake / 1.550'' exhaust
Compression Ratio: 9.72:1
Rocker Arms: Aluminum roller style
Rocker Arm Ratio: 1.5:1
Distributor: HEI type
Intake Manifold: Single plane aluminum
Water Pump: Cast-iron, long-style
Flexplate: 12.75'' diameter, 153-tooth
Recommended Fuel: Premium pump
Ignition Timing: 36° Total @ 4000 rpm
Maximum Recommended RPM: 5800
Balanced: External

GM Warranty
