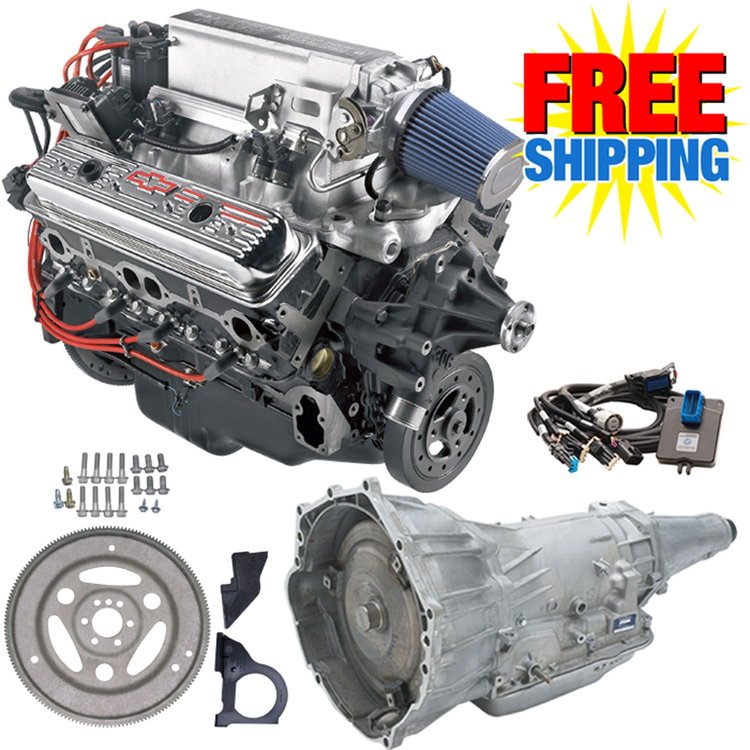

Ram Jet 350 350ci Connect & Cruise Powertrain System 4L65-E Trans

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

351 HP @ 5000 RPM
403 ft/lbs TQ @ 3600 RPM
Remanufactured Hydra-Matic 4L65-E Four Speed Transmission
2400-2800 RPM Stall Torque Converter

Ram Jet 350 TECH SPECS:
Engine Type: Small-Block V-8
Displacement: 350ci (5.7L)
Bore x Stroke: 4.000' x 3.480'
Block: Cast-iron with two-bolt main caps
Crankshaft: Cast iron
Connecting Rods: Powdered metal steel
Pistons: Hypereutectic aluminum
Camshaft Type: Hydraulic roller
Camshaft Lift: .460' intake / .481' exhaust
Camshaft Duration (@.050 in.): 196° intake / 206° exhaust
Cylinder Heads: Vortec cast iron w/ 64cc combustion chambers
Valve Size: 1.94' intake / 1.50' exhaust
Compression Ratio: 9.0:1
Rocker Arms: Aluminum Roller
Rocker Arm Ratio: 1.6:1
Recommended Fuel: Premium pump
Maximum Recommended rpm: 5200
Balanced: External
Intake Manifold: Ram Jet PFI design

INSTALLATION NOTES:

Comes with externally balanced, manual transmission flywheel; change to externally balanced flexplate for automatic transmission applications
Installer to supply 12-volt power source and fuel
See instructions for fuel pump recommendation
Designed for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
IMPORTANT! For a safe, proper, and trouble-free engine break-in, the MEFI 4 computer has a "green" mode that controls rpm during the break-in period. During this period, engine speed is limited to 4000 rpm in the first hour, 4500 rpm in the second hour, and 5500 rpm in the third hour
