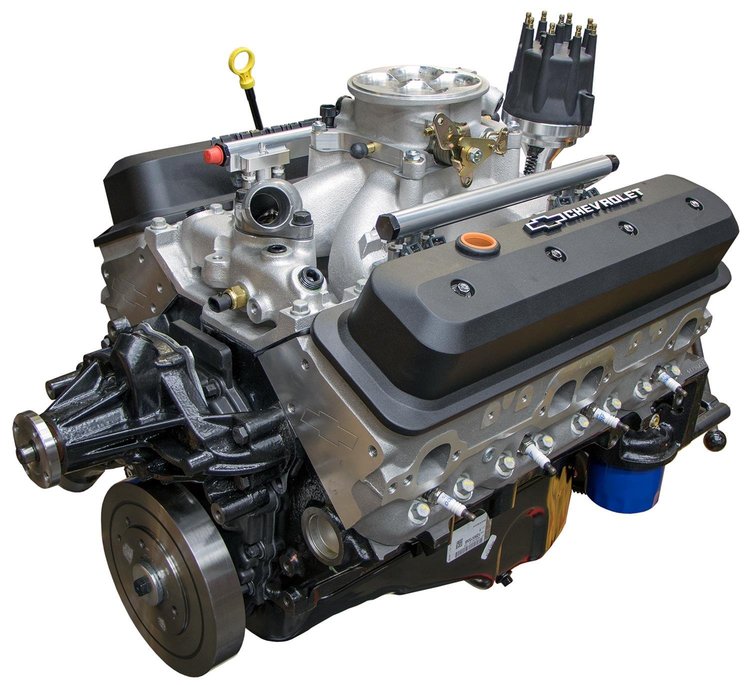

ZZ6 EFI Deluxe 350 ci Engine
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19368149

ZZ6 EFI Deluxe 350 ci Engine

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Crate Engine
Deluxe
    ZZ6 EFI Deluxe 350 ci Engine
  • 420 HP @ 5800 rpm
  • 408 ft.-lbs. Torque @ 4500 rpm

    Engine Break-In Procedure

    Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.

    Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. This is critical to break in the camshaft.

    Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM.  Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then letting off in gear and coasting back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then letting off in gear and coasting back down to 20 MPH.

    Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check coolant level, top off if necessary. Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading.  Change the oil and oil filter again using conventional (non-synthetic) oil.  Keep an eye on oil level during the first thousand or so miles.

    It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.



Part TypeEngine
BrandCHEVROLET PERFORMANCE
Package Height30.0
Package Width41.25
Package Length41.5
Weight491.0 PG
Part CategoryPerformance Parts
Spark Plug Wires IncludedYes
Cylinder Head MaterialAluminum
Air Cleaner IncludedYes
Cylinder Heads IncludedYes
Computer IncludedYes
Water Pump IncludedYes
Throttle Body IncludedYes
Harmonic Balancer IncludedYes
Fuel DeliveryFuel Injection
Flexplate IncludedYes
AssembledYes
Intake Manifold IncludedYes
Engine Make/SizeChevy 350
Flywheel IncludedNo
Compression Ratio9.7:1
Valve Covers IncludedYes
Horsepower420
Distributor IncludedYes
Oil Pan IncludedYes
Camshaft StyleHydraulic roller tappet
Timing Cover IncludedYes
Spark Plugs IncludedYes
Package Qty1
Package TypeEA
