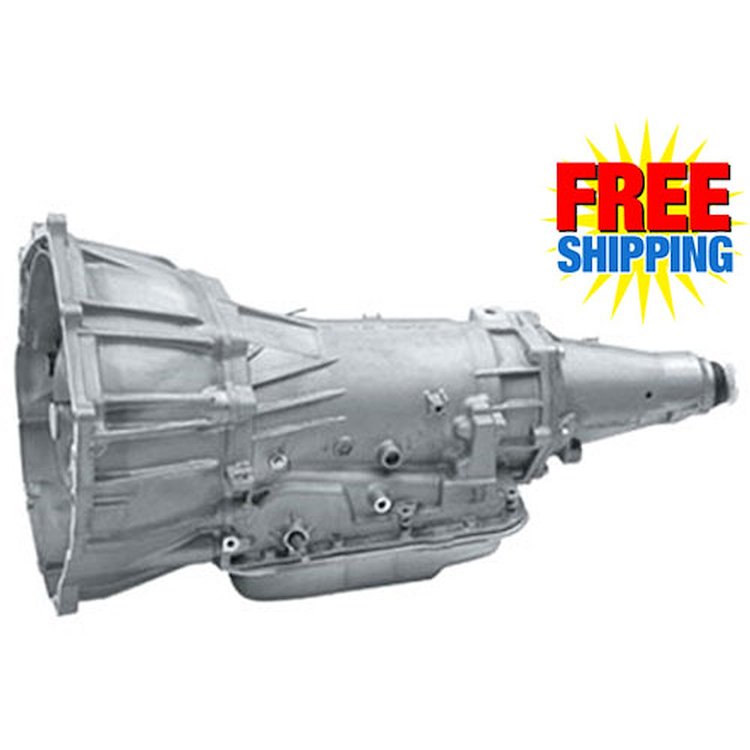

SuperMatic 4L70-E 2WD Four-Speed Automatic Transmission
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-19368613

SuperMatic 4L70-E 2WD Four-Speed Automatic Transmission

$4,92170
Truck Freight
2 left in stock
ShippingShips Today
ShippingFree shippingLowest PriceLowest Price Guarantee

4L70-E 2WD Four-Speed Automatic Transmission
    SuperMatic 4L70-E 2WD Four-Speed Automatic Transmission
  • Remanufactured Chevrolet Performance Part

    The automatic SuperMatic 4L70-E 2WD transmission is designed to complement any performance rear wheel drive application with exceptional strength and the shift characteristics enthusiasts want. Stronger version than the production based 4L60-E, features five pinion gear sets, heat treated stator shaft splines, seven plate clutch, and more. It is also capable of handling increased horsepower and torque. This transmission has the capability to use either the Chevrolet Performance stand alone transmission controller kit 809-19212657 or the GM Connect-N-Cruise Transmission Controller kit 809-19257634. Both systems are designed to operate with Chevrolet Performance Parts E67-based engine controller, which operates all of Chevrolet Performance Parts' LS-based crate engines with electronic fuel injection. And, while the systems are designed for "tuning-free" operation right out of the box, they also include optional connections that allow adjusting a number of calibration settings, including shift timing and shift firmness.

The Chevrolet Performance 4L70-E SuperMatic 2WD Four-Speed Automatic Transmission is an electronically controlled four speed overdrive transmission that comes factory fresh and is GM engineered, tested and validated to deliver smooth, dependable performance. Best of all Chevrolet Performance's full selection of controllers, adapter kits, and spacers make installation simple. This is the perfect companion for a new Chevrolet Performance crate engine. Everything you need for a solid and reliable powertrain.

Show More

Features:

  • Rated for up to 495 ft/lbs of torque
  • Based on the Hydra-Matic 4L60 transmission series
  • Increased horsepower and torque capacity
  • Heat-treated stator shaft splines
  • Five pinion gearsets
  • Induction-hardened turbine shaft
  • Seven-plate clutch
  • Recalibrated valve body
  • Gear ratios: 1st: 3.06, 2nd: 1.62, 3rd: 1.00, 4th: 0.70
  • Coolant Fitting Size can be 1/4 x 18MPS or 9/16 x 18MPS

    Note: Torque Converter Not Included

GM Warranty

Part TypeAutomatic Transmission
Product LineChevrolet Performance SuperMatic 4L70-E 2WD Transmission
BrandCHEVROLET PERFORMANCE
Package Height20.0
Package Width21.2
Package Length44.5
Weight170.0 PG
Part CategoryPerformance Parts
Transmission Case StyleOEM
Part FitmentSemi Universal
Transmission Case MaterialAluminum
ToolTransmission Lookup
Vendor Part Number19368613
Package Qty1
Package TypeEA
