Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19368946

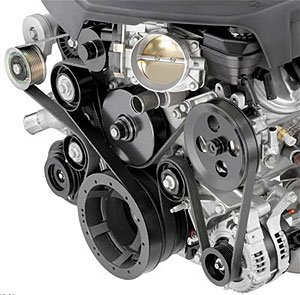

LSA/CTS-V Accessory Drive System With Power Steering, Without A/C
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
LS Engine Serpentine Drive Kits
LSA/CTS-V Accessory Drive SystemWith Power Steering, Without A/C Fits all LSA engines
Notes:
- To add air conditioning use 809-19244106 LSAAccesory Drive System A/C add-on Kit.
Kit Includes:
- Qty 1 Part #12578550 - Bracket-Gen
- Qty 1 Part #25925447 - Generator Asm
- Qty 2 Part #11518630 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 3 Part #11518637 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #12611905 - Bracket-P/S Pump
- Qty 2 Part #11515760 - Bolt-Rad Upr Mt
- Qty 1 Part #12611906 - Pulley-P/S Pump
- Qty 1 Part #20806165 - Pump Asm-P/S
- Qty 1 Part #22768353 - Reservoir Asm-P/S Fluid
- Qty 1 Part #15224351 - Hose Asm-P/S Fluid Rsvr Otlt
- Qty 3 Part #11518633 - Bolt-Gen
- Qty 3 Part #11589311 - Bolt-Hfh, M8x1.25x29, 19 Th
- Qty 1 Part #12606501 - Bracket-Belt Idler Pulley
- Qty 3 Part #11610074 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #11589311 - Bolt-Hfh, M8x1.25x29, 19 Th
- Qty 1 Part #12606500 - Bracket-Drv Belt Tensr
- Qty 1 Part #11588749 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #11588742 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #12628025 - Tensioner Asm-Drv Belt
- Qty 1 Part #11571051 - Bolt-Hex Washer Hd
- Qty 1 Part #12606031 - Pulley Asm-Spchg Belt Idler
- Qty 1 Part #12606032 - Pulley Asm-Belt Idler
- Qty 2 Part #11518630 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #12622452 - Tensioner Asm-Spchg Belt
- Qty 1 Part #11588752 - Bolt-Hvy Hx Acorn Flg Hd
- Qty 1 Part #12568996 - Pulley Asm-Belt Idler
- Qty 1 Part #12628027 - Belt-w/Pmp & Gen & P/S Pump
- Qty 1 Part #12636227 - Belt-Spchg
- Qty 1 Part #19243527 - Instructions
Part TypePulley Kit
BrandCHEVROLET PERFORMANCE
Package Height13.0
Package Width18.0
Package Length19.0
Weight41.195 PG
Part CategoryPerformance Parts
Belt MaterialRubber
Belt Top Width21.36
Hardware IncludedYes
Idler Brackets IncludedYes
Idler/Tensioner IncludedYes
Air Conditioning Bracket IncludedNo
Belt ColorBlack
Alternator Pulley IncludedYes
Alternator Nose Cover IncludedNo
Idler Pulley GroovesNon-ribbed
Bracket MaterialAluminum
Universal Or Specific FitUniversal
Crankshaft Nose Cover IncludedNo
Water Pump Pulley IncludedNo
Alternator Brackets IncludedYes
Power Steering Pulley AttachmentPress fit
Pulley FinishBlack
Crankshaft Pulley IncludedNo
Belt Groove Quantity6
QuantitySold as a kit
Effective Length (In)84.84
Power Steering Brackets IncludedYes
Alternator Pulley Grooves6-groove, serpentine
Air Conditioning Cover IncludedNo
Air Conditioning Pulley IncludedNo
Power Steering Pulley IncludedYes
Belt Quantity2
Alternator Fan IncludedYes
Effective Length (Mm)2155
Power Steering Pump StyleRemote reservoir
Power Steering Pulley Grooves6-groove, serpentine
Pulley ColorBlack
Idler Cover IncludedNo
Part FitmentSemi Universal
Bracket FinishNatural
Pulley MaterialSteel
Pulley Groove Quantity6
Water Pump Nose Cone IncludedNo
Package Qty1
Package TypeEA
