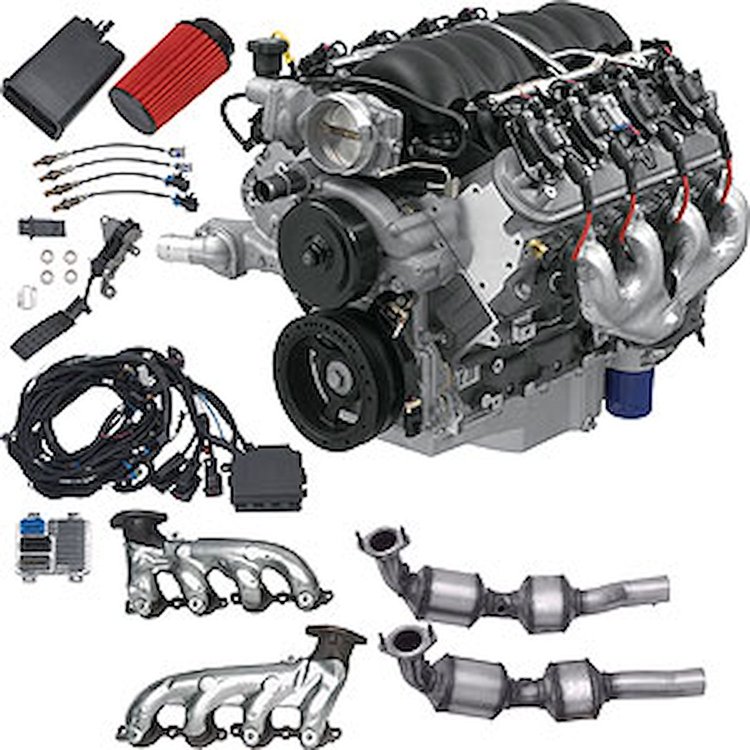

E-ROD LS3 6.2L 376ci Engine 430 HP at 5900 RPM
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19370415

E-ROD LS3 6.2L 376ci Engine 430 HP at 5900 RPM

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Crate Engine
    E-ROD LS3 6.2L 376ci Engine
  • 430 HP at 5900 RPM
  • 424 ft/lbs TQ at 4600 RPM
  • Manual Transmission Calibration
  • Cast-Aluminum Block
  • Aluminum Heads

    E-ROD LS3 TECH SPECS

    • Engine Type: LS-Series Gen IV Small-Block V-8
    • Displacement: 376ci (6.2L)
    • Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
    • Block: Cast-aluminum with six-bolt, cross-bolted main caps
    • Crankshaft: Nodular iron
    • Connecting Rods: Powdered metal
    • Pistons: Hypereutectic aluminum
    • Camshaft Type: Hydraulic roller
    • Valve Lift: .551' intake / .522' exhaust
    • Camshaft Duration (@.050 in.): 204° intake / 211° exhaust
    • Cylinder Heads: Aluminum L92-style port; 'as cast' with 68-cc chambers
    • Valve Size: 2.165' intake / 1.590' exhaust
    • Compression Ratio: 10.7:1
    • Rocker Arms: Investment-cast, roller trunnion
    • Rocker Arm Ratio: 1.7:1
    • Recommended Fuel: 92 octane
    • Maximum Recommended rpm: 6600
    • Reluctor Wheel: 58X
    • Balanced: Internal

    Installation Notes:

    • Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)

    Engine Break-In Procedure

    Use only engine oil that meets dexos1 specifications. For track events or competitive driving, use Mobil 1 15W-50 engine oil. Fill the engine with oil and follow the proper engine priming procedure.  Also check and fill as required any other necessary fluids such as coolant, power steering fluid, etc.

    Start the engine and listen for any unusual noises. If no unusual noises are noted, run the engine at approximately 1000 RPM until normal operating temperature is reached.  The engine should be driven at varying loads and conditions for the first 30 miles or one hour without wide open throttle (WOT) or sustained high RPM accelerations.  Run five or six medium throttle (50%) accelerations to about 4000 RPM and back to idle (0% throttle) in gear. Run two or three hard throttle (WOT 100%) accelerations to about 4000 RPM and back to idle (0% throttle) in gear.

    Change the engine oil and filter. Inspect the oil and the oil filter for any foreign particles to ensure that the engine is functioning properly.  Drive the next 500 miles (12 to 15 engine hours) under normal conditions. Do not run the engine at its maximum rated engine speed. Also, do not expose the engine to extended periods of high load.  Change the oil and filter again, inspect the oil and oil filter for any foreign particles to ensure that the engine is functioning properly.



    Power Your Project with CARB-certified GM LS Performance!

    Chevrolet Performance LS3 E-ROD powertrain system will enable enthusiasts to build a vehicle that complies with emissions law while providing modern-day performance and efficiency. This E-ROD System is certified by California Air Resources Board (CARB EO #D-126-32), which permits its installation into classic cars and trucks that predate onboard OBD-II emissions diagnostics. This 6.2L LS3 engine delivers 430 horsepower just like it's found in a C6 Corvette with a refinement that is rare in the world of high performance.

    Show More

    Connect and Cruise Kits

    Chevrolet Performance continues to lead the industry with its unprecedented Connect & Cruise crate powertrain systems - factory-engineered engine and transmission combinations. Chevy Performance engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower from them with total confidence. The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation and operation without the need for third-party tuning. Each kit delivers a brand-new, fully assembled crate engine, an electronically controlled overdrive transmission, electronic control modules for both, and the engine control hardware to get it all running in your project vehicle. The convenience of a crate engine, the assurance of factory validated performance, and the value of an inclusive package - that's what you get with Chevrolet Performance's Connect & Cruise crate powertrain systems. Detailed instructions outline all the necessary steps. The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems - and they covered them with a 24-month/50,000-mile limited warranty.

    The Chevrolet Performance E-ROD LS3 6.2L 430HP Crate Engine offers the perfect balance of high-performance power and modern emissions compliance. Designed specifically for hot rod and restomod enthusiasts in emissions-controlled states, the E-ROD LS3 brings legendary LS power in a package that's 50-state legal and ready for the road.

    Producing a stout 430 horsepower and 424 lb-ft of torque, this engine delivers crisp throttle response and smooth drivability thanks to its proven aluminum block, high-flow heads, and hydraulic roller camshaft. Whether you're building a street cruiser or a weekend track machine, the 6.2 LS motor offers reliable, modern power without sacrificing performance.

    What sets the LS3 EROD apart is its complete system approach. It includes a specially calibrated ECM, wiring harness, oxygen sensors, MAF sensor, catalytic converters, and more—everything you need to meet emissions requirements while simplifying your swap. It's engineered to deliver a factory-quality driving experience in a custom build.

    Looking for an LS3 engine and transmission combo to modernize your classic? Pairing the E-ROD LS3 with a GM automatic or manual transmission delivers unmatched performance and seamless integration, taking your project to the next level.

    For builders who want horsepower with responsibility, the E-ROD LS3 is the smart solution. With OEM quality, plug-and-play simplicity, and emissions compliance, it's the ideal choice for enthusiasts who demand performance without compromise. Take your build further—clean, powerful, and road-ready with Chevrolet Performance.

Part TypeEngine
Product LineChevrolet Performance E-ROD LS3 6.2L 430HP Crate Engine
BrandCHEVROLET PERFORMANCE
Package Height36.0
Package Width42.0
Package Length48.0
Weight623.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Spark Plug Wires IncludedYes
Air Cleaner IncludedYes
Carburetor IncludedYes
Carb Eo NumberD-126-30 (pdf)
Water Pump IncludedYes
EmissionLegal
Flexplate IncludedYes
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeChevy LS Series
Flywheel IncludedNo
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower430
Distributor IncludedYes
Camshaft StyleHydraulic roller tappet
Cylinder Heads IncludedYes
Computer IncludedYes
Throttle Body IncludedYes
Harmonic Balancer IncludedYes
Quantity1
Fuel DeliveryFuel Injection
Rpm Power Range800-6400
Engine BalanceInternal
Crate Engine Cylinder Head MaterialAluminum
Compression Ratio10.7:1
Oil Pan IncludedYes
Timing Cover IncludedYes
Spark Plugs IncludedYes
Package Qty1
Package TypeEA
